🏋️ PRE-ORDER — Estimated Dispatch end of November. Order now to secure your unit.

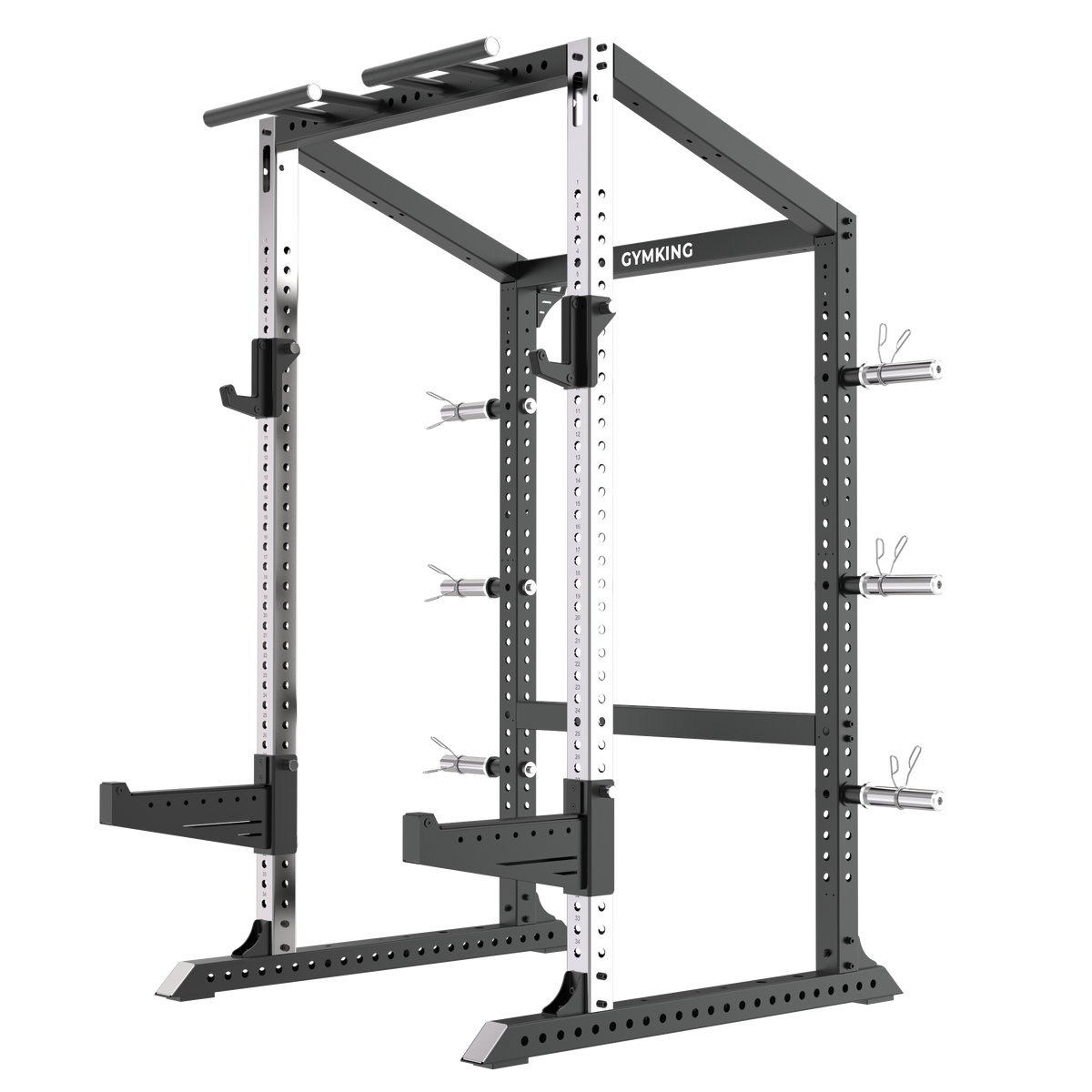

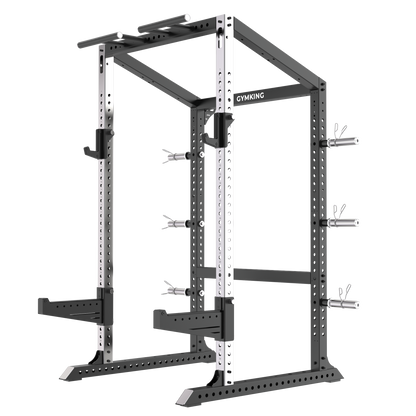

The GymKing M75 is a modular commercial power rack built on 75 x 75mm steel with brushed stainless steel front uprights and laser-cut hole numbers. Start with the power rack, then add modules as you go. One frame can grow into a Smith machine, a dual-stack functional trainer or a full all-in-one trainer.

The rack ships with a multi-grip knurled chin-up bar, J-hooks, spotter arms and six plate storage horns. J-hooks and spotter arms are rated to 252kg (555lbs). It suits home gyms, garage gyms, PT studios and light commercial facilities that want a rack they can build on.

Browse our full Power Racks range to compare all models

Key features

• Modular system: buy the power rack now and upgrade later with the Smith machine, functional trainer and mirror modules (see Build options below)
• Commercial 75 x 75mm frame: main uprights in 75 x 75 x 2.5mm and 75 x 75 x 3mm steel, with concealed welding for a clean finish
• Brushed stainless steel uprights: laser-cut holes and numbers, so you can set the same height every session
• Multi-grip chin-up bar: knurled 35mm bars with aluminium knurled thumb nuts, adjustable spacing between the bars and aluminium end caps
• J-hooks and spotter arms: each rated to 252kg (555lbs) across both sides, with UHMW wear strips on the spotter arms for impact and abrasion resistance
• Six plate storage horns: 48mm Olympic horns with chromed rest pins and thread-lock fittings, each rated to 100kg (220lbs)
• Stable footprint: heavy base feet with an 8mm safety stopper plate to keep the structure solid

What's included (power rack)

• 2 x brushed stainless steel front uprights
• 2 x black steel rear uprights with crossmembers and base feet
• Multi-grip knurled chin-up bar
• 2 x J-hooks
• 2 x spotter arms
• 6 x Olympic plate storage horns

Build options (sold separately)

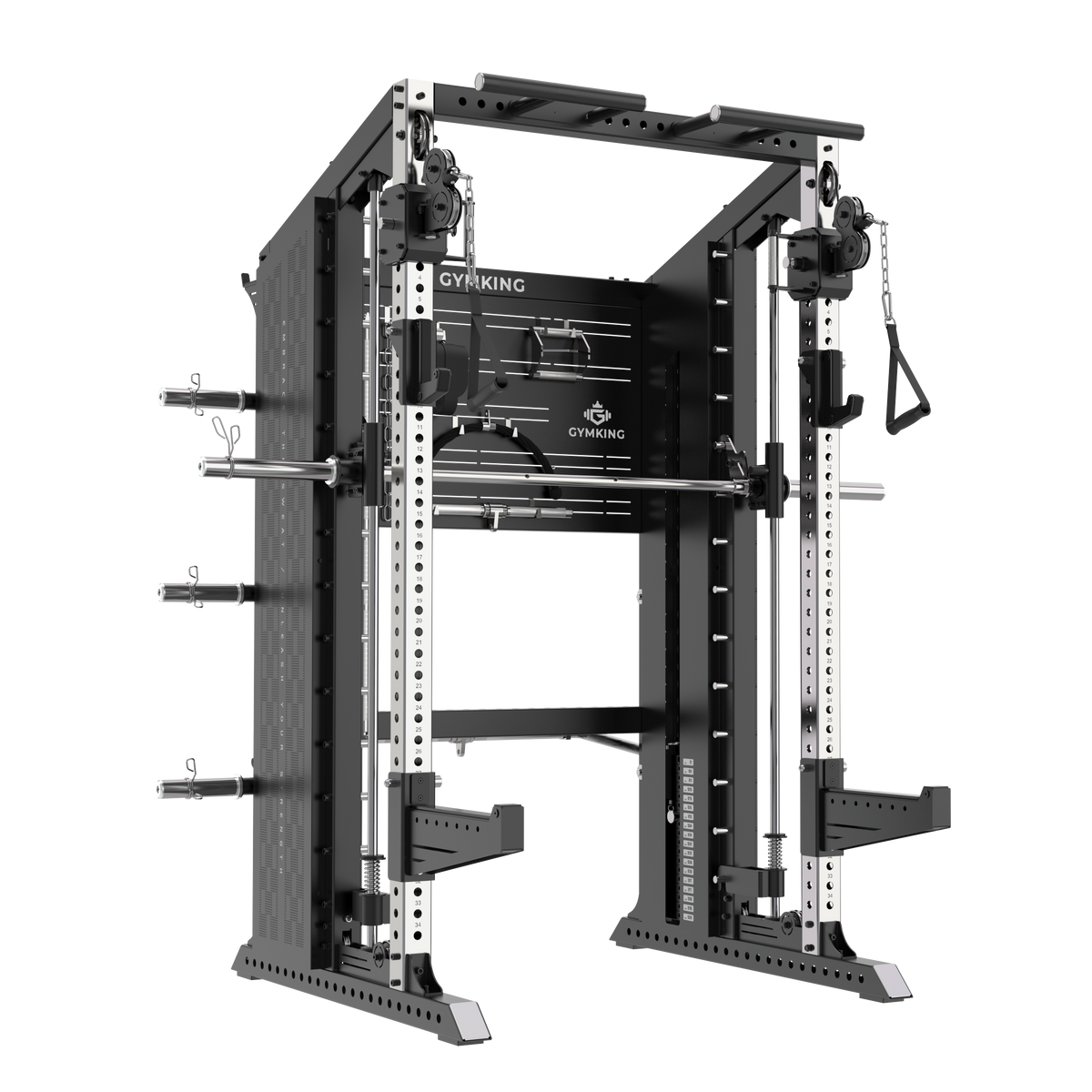

Add-on modules are sold separately, so you can build up over time. Want the complete build in one order? See the GymKing M75 Commercial Multi Function Centre. The Smith machine (B) and the functional trainer (C) both require the rear frame (A). You only need A once: if you already own the rear frame, add B or C on its own at any time.

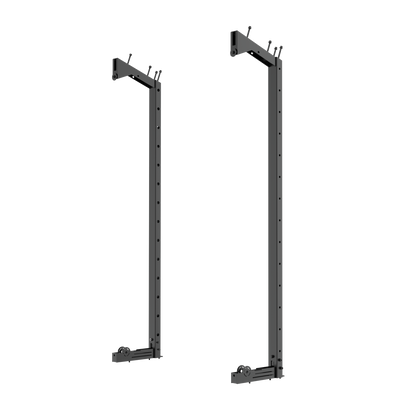

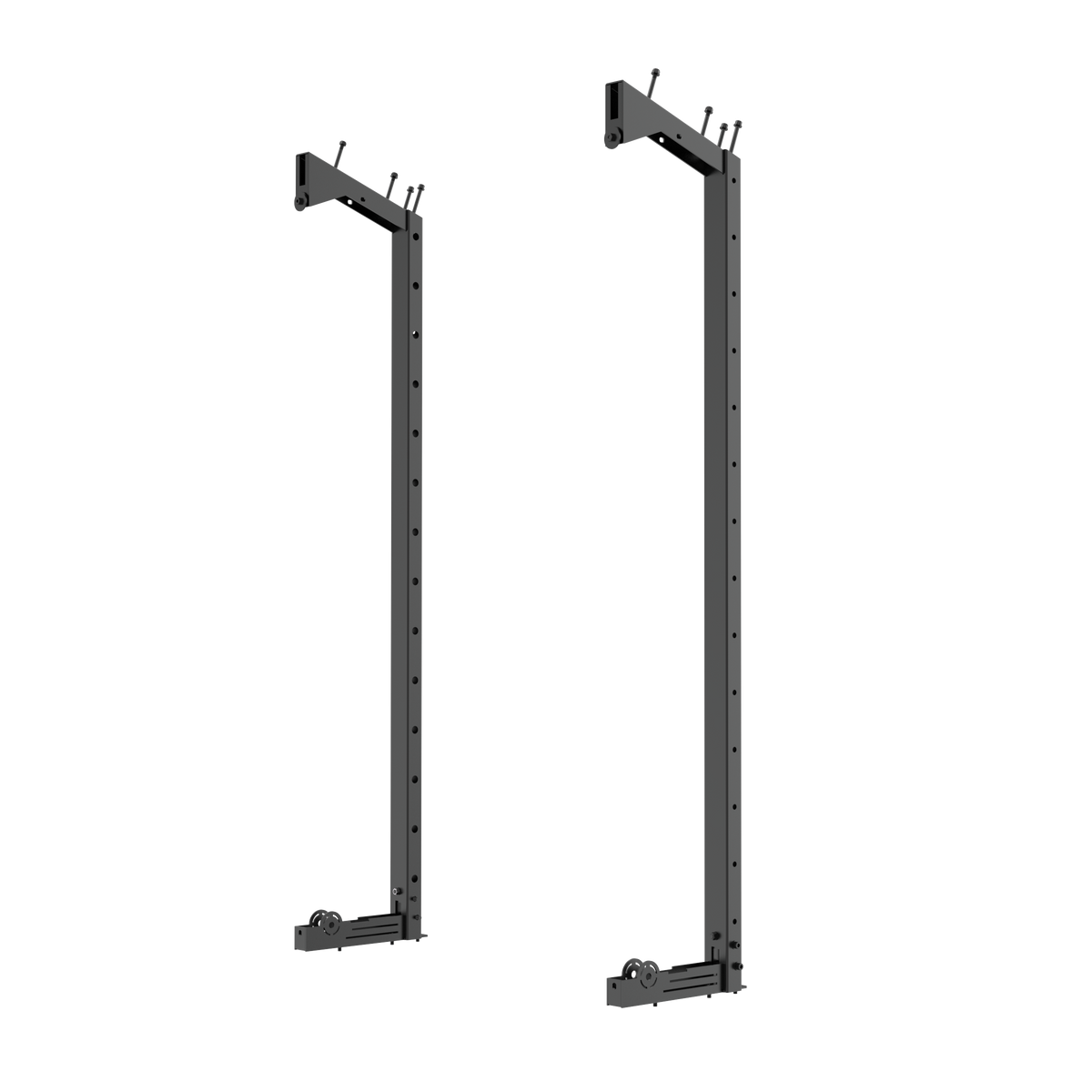

• A: Rear frame extension (GK-PR75A). Extends the rack to carry the Smith machine or cable system. Required for B and C.

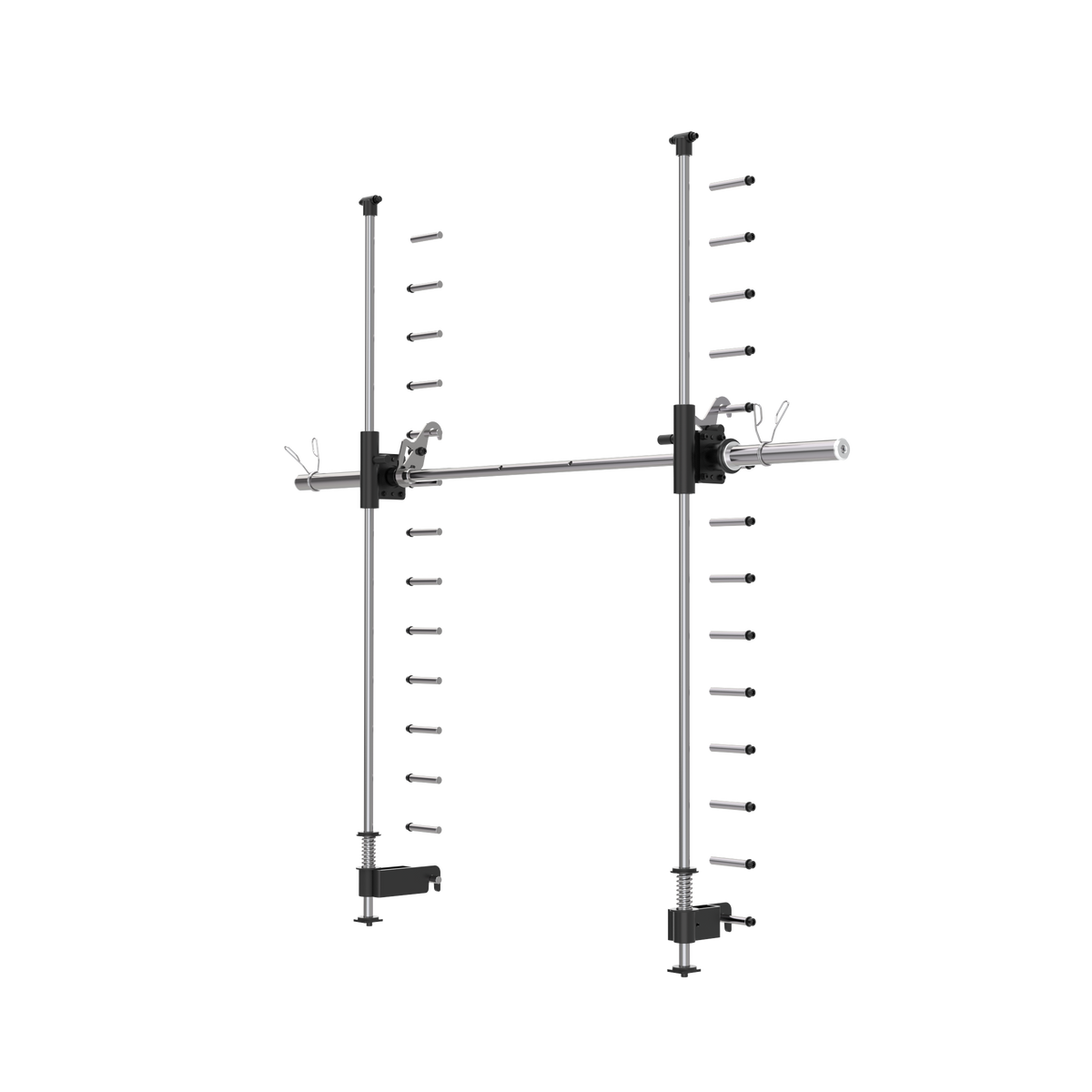

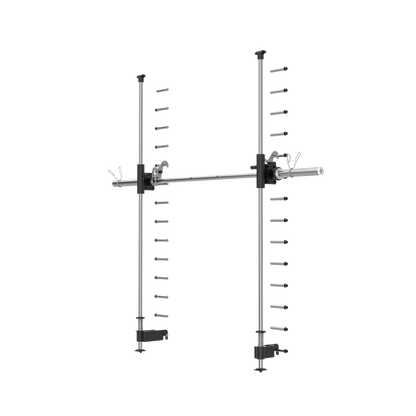

• B: Smith machine (GK-PR75B), requires A. High-end knurled chrome Smith bar on solid hard-chrome guide rods, with chrome springs for cushioning. Rated to 252kg (555lbs).

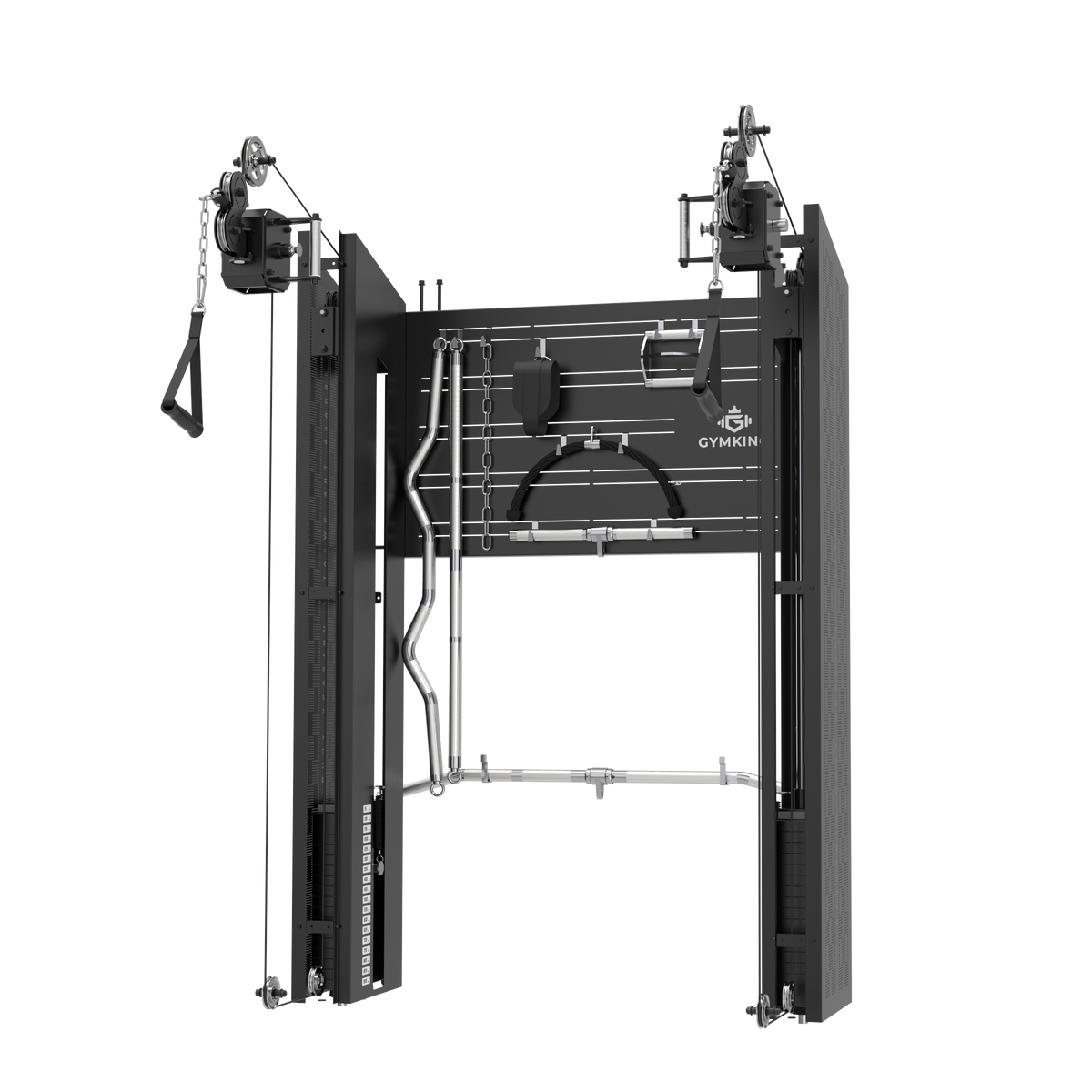

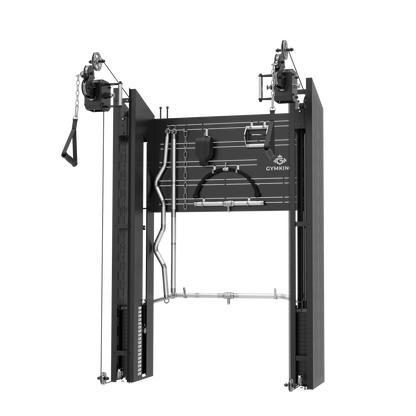

• C: Dual-stack functional trainer (GK-PR75C), requires A. 2 x 90kg weight stacks with metal covers, quiet aluminium pulleys, 34 height positions on built-in rollers, knurled adjustment handles, a rear storage panel with movable hooks for attachments, and a set of cable bars and handles.

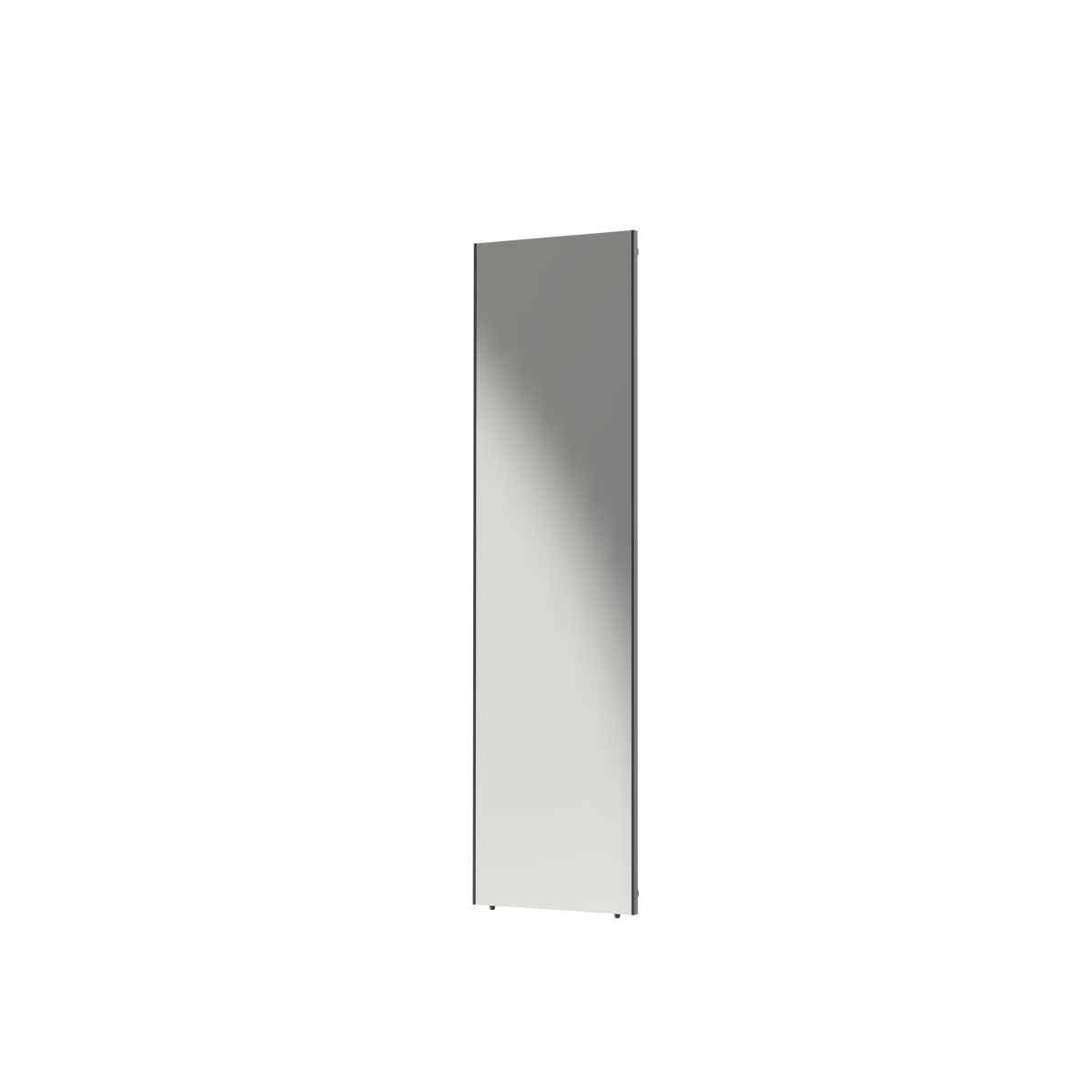

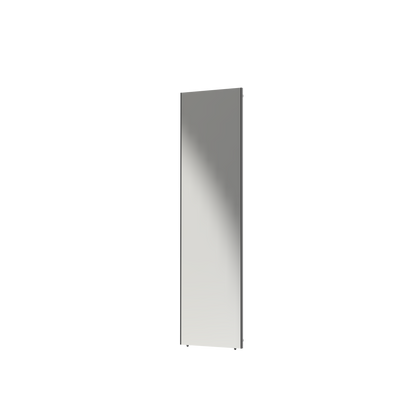

• D: Shatterproof mirror (GK-PR75D). 1660 x 450mm polymer mirror film, about 15–20% of the weight of glass and won't shatter. It mounts with rubber-coated magnets.

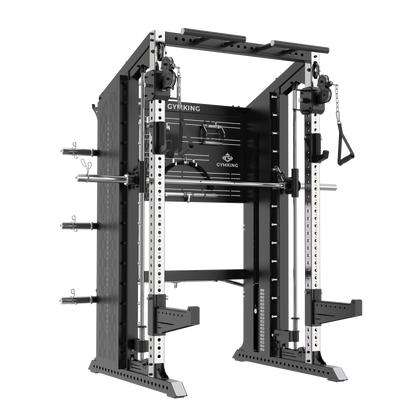

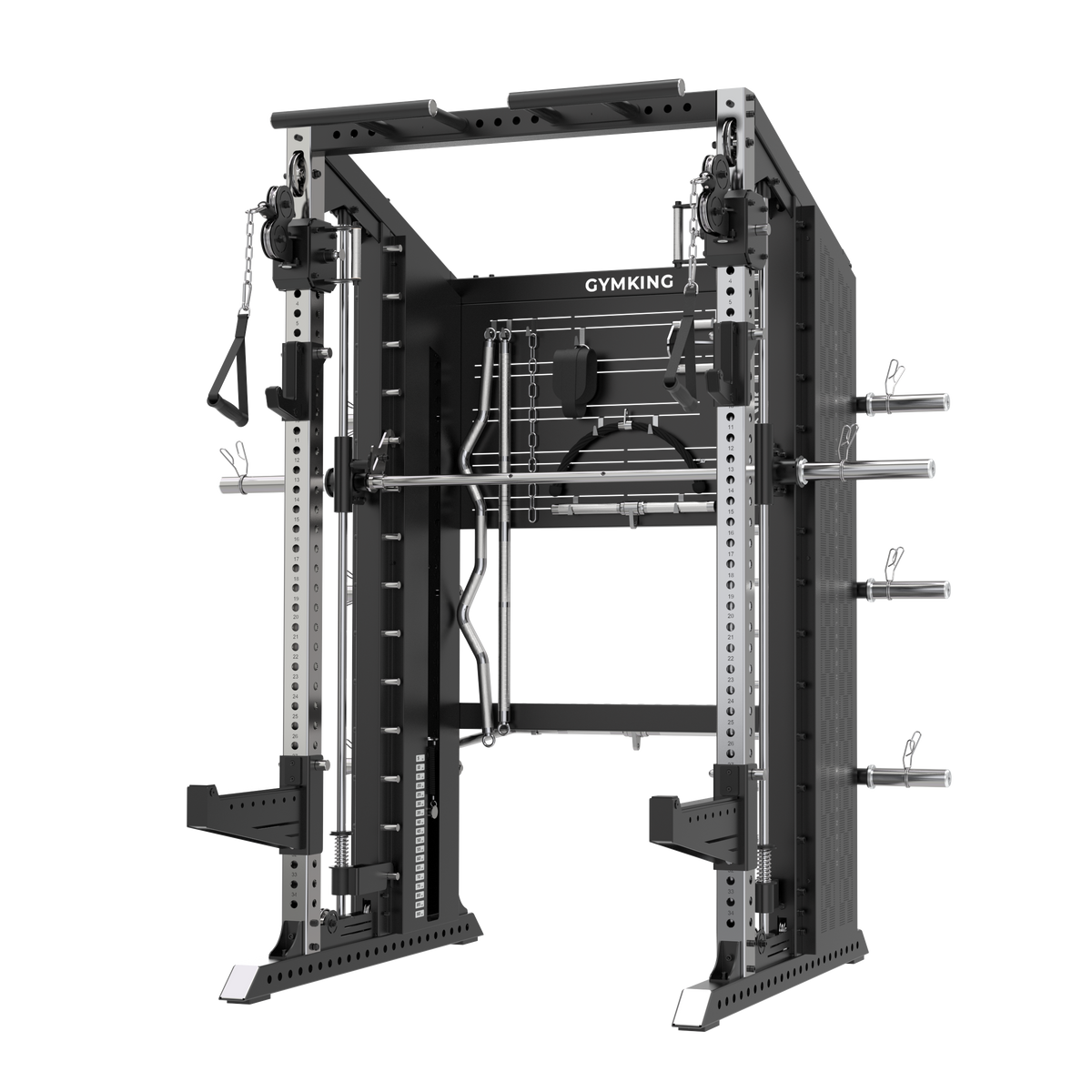

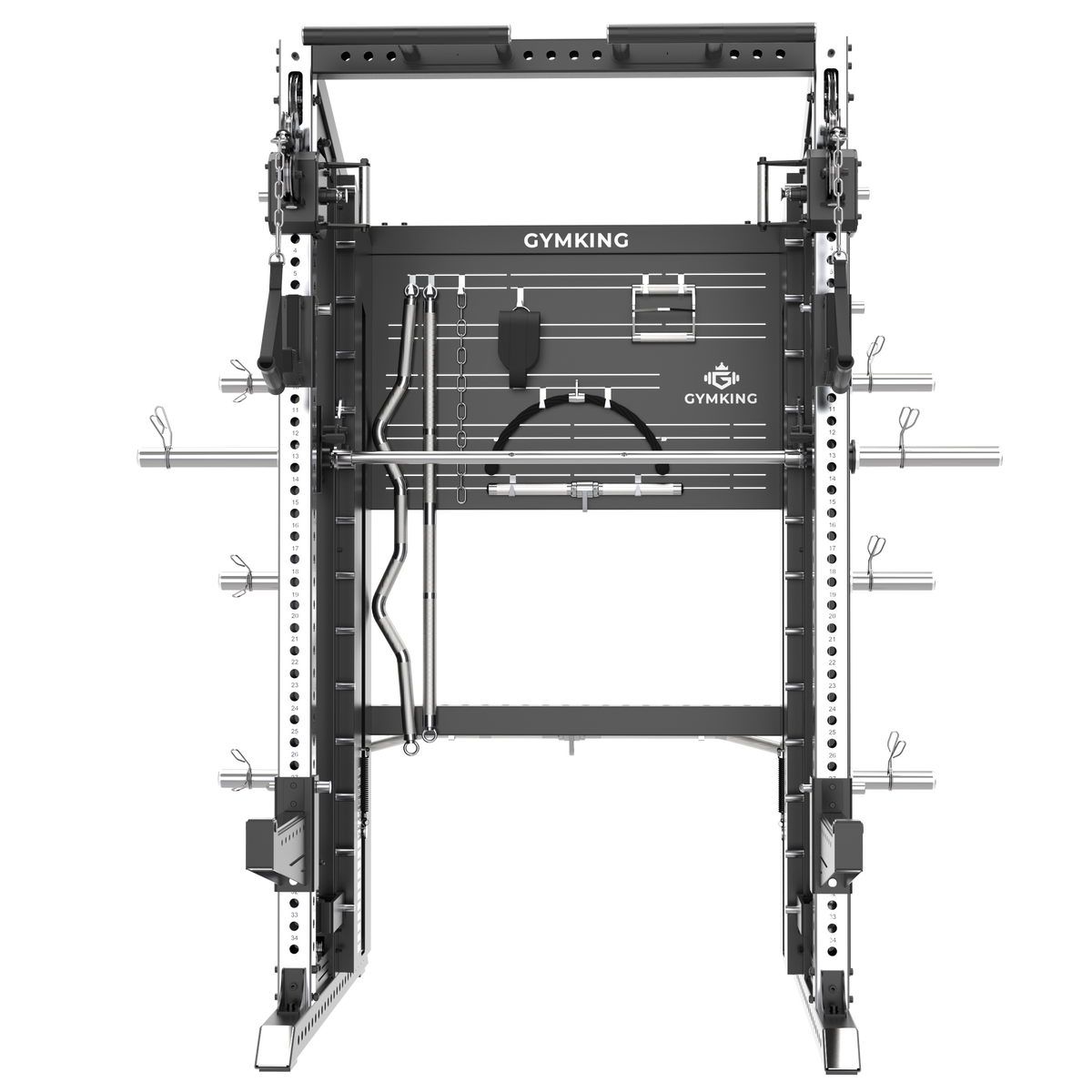

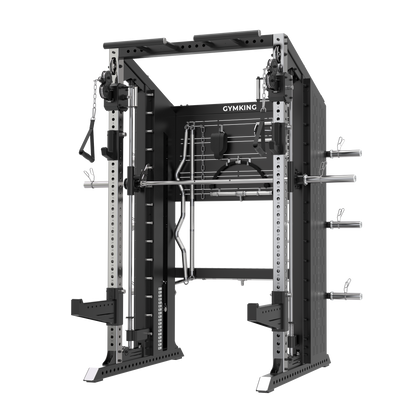

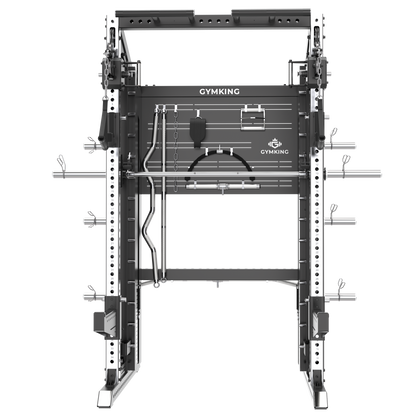

Popular builds: rack + A + B (Smith rack), rack + A + C (cable rack), or rack + A + B + C (full all-in-one trainer).

Specifications

• Type: Modular commercial power rack
• Colour: Black with brushed stainless steel uprights
• Main frame: 75 x 75 x 2.5mm and 75 x 75 x 3mm steel; 50 x 75 x 2.5mm and 50 x 70 x 2.5mm secondary tube
• Maximum user weight: 159kg (350lbs)
• J-hooks, spotter arms and Smith bar: 252kg (555lbs) maximum load (both sides)
• Plate storage horns: 100kg (220lbs) maximum load each
• Height: 2200mm
• Full build (rack + A + B + C) dimensions: 2200mm high x 1810mm wide (2000mm with Smith bar) x 1500mm deep, 1095mm between uprights
• Floor area required (full build): approx. 3.0m²

Shipping specifications (Power Rack)

• Shipping: Australia-wide delivery
• Shipping weight: Approx. 144kg across 8 cartons
• Largest carton: Length: 2.21m x Width: 0.20m x Height: 0.10m
• Add-on modules: A: 1 carton, approx. 30kg. B: 2 cartons, approx. 50kg. C: 9 cartons, approx. 278kg. D: 1 carton, approx. 3kg.
