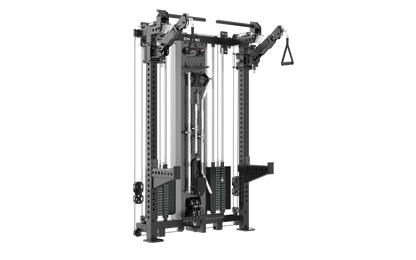

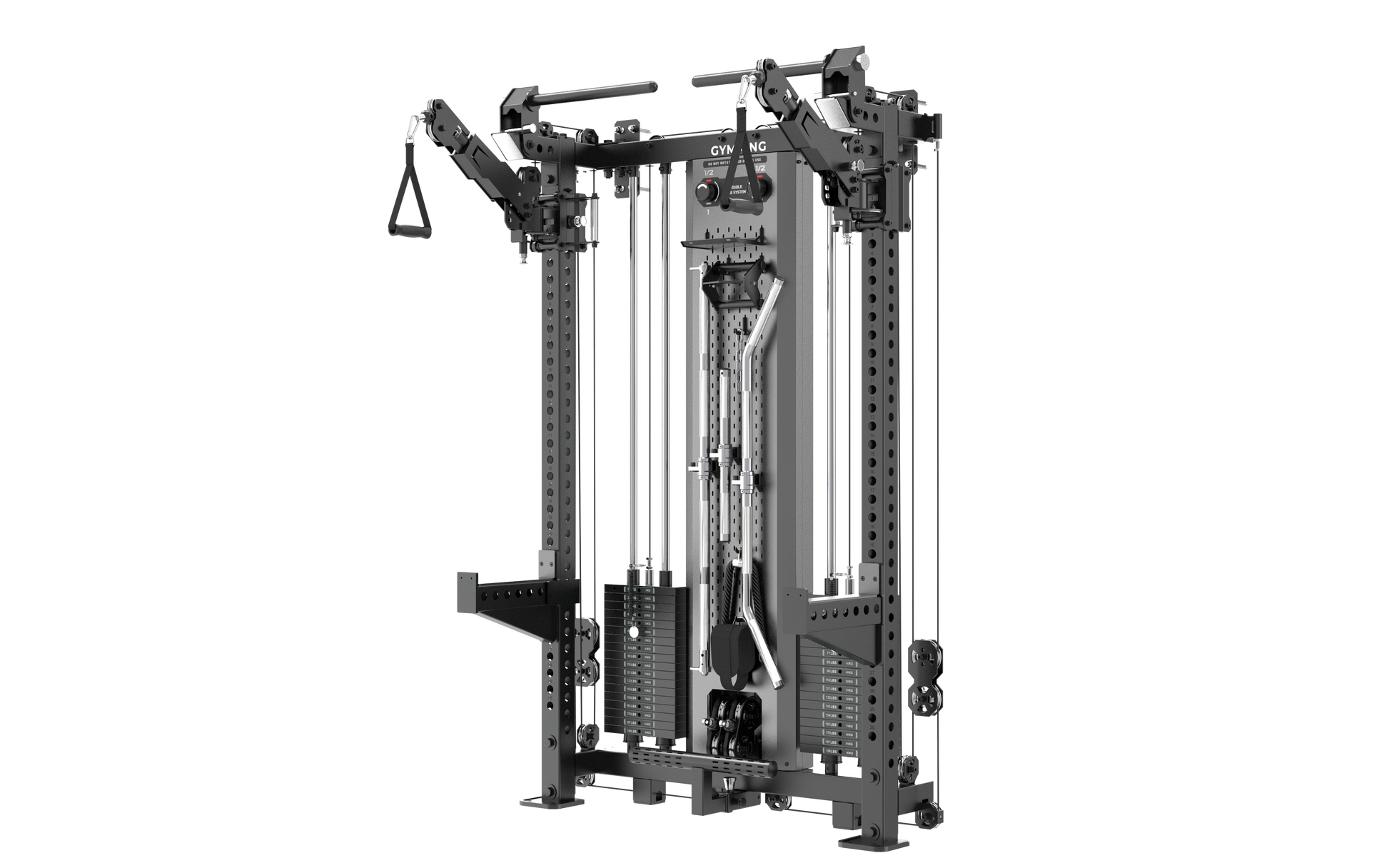

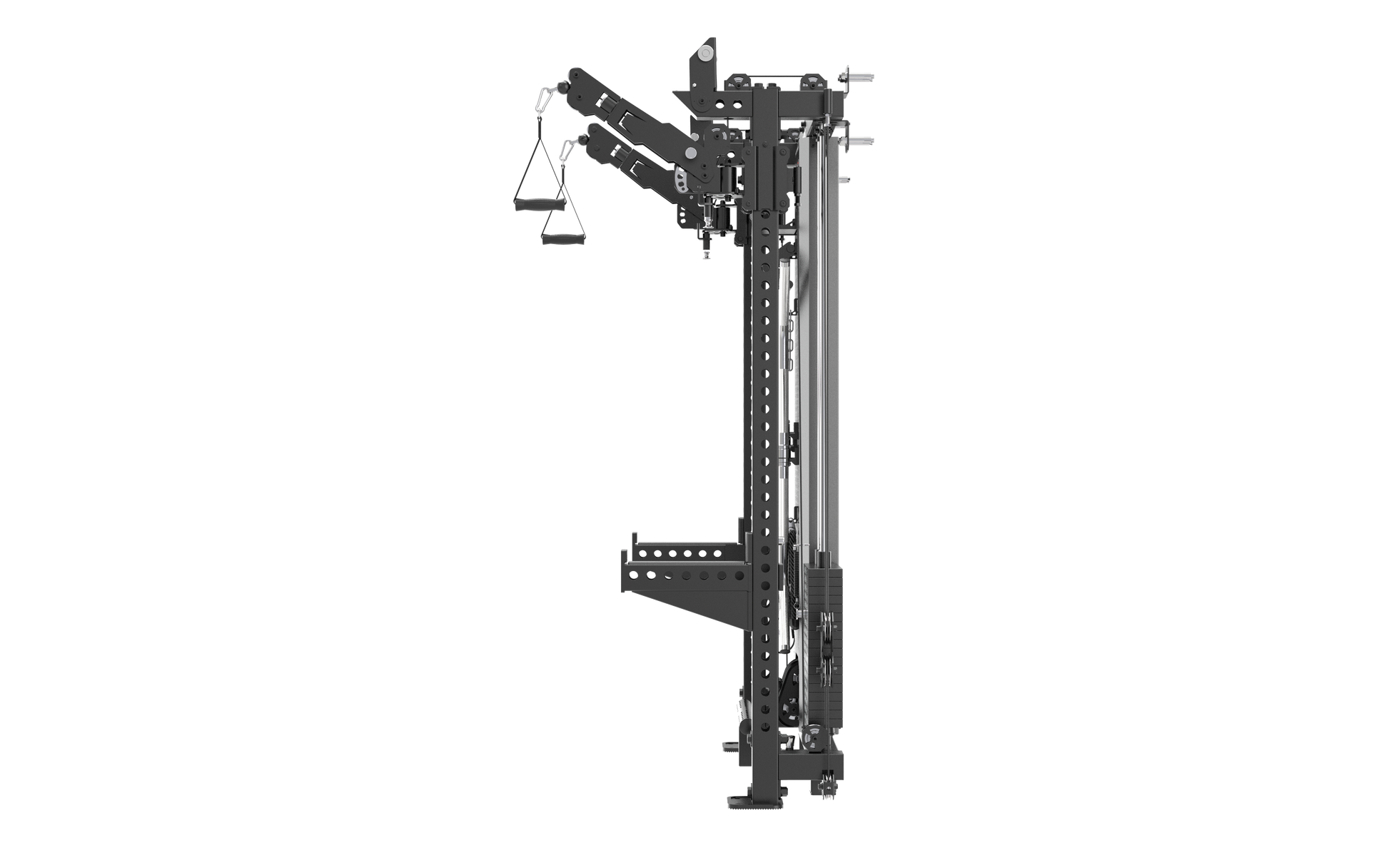

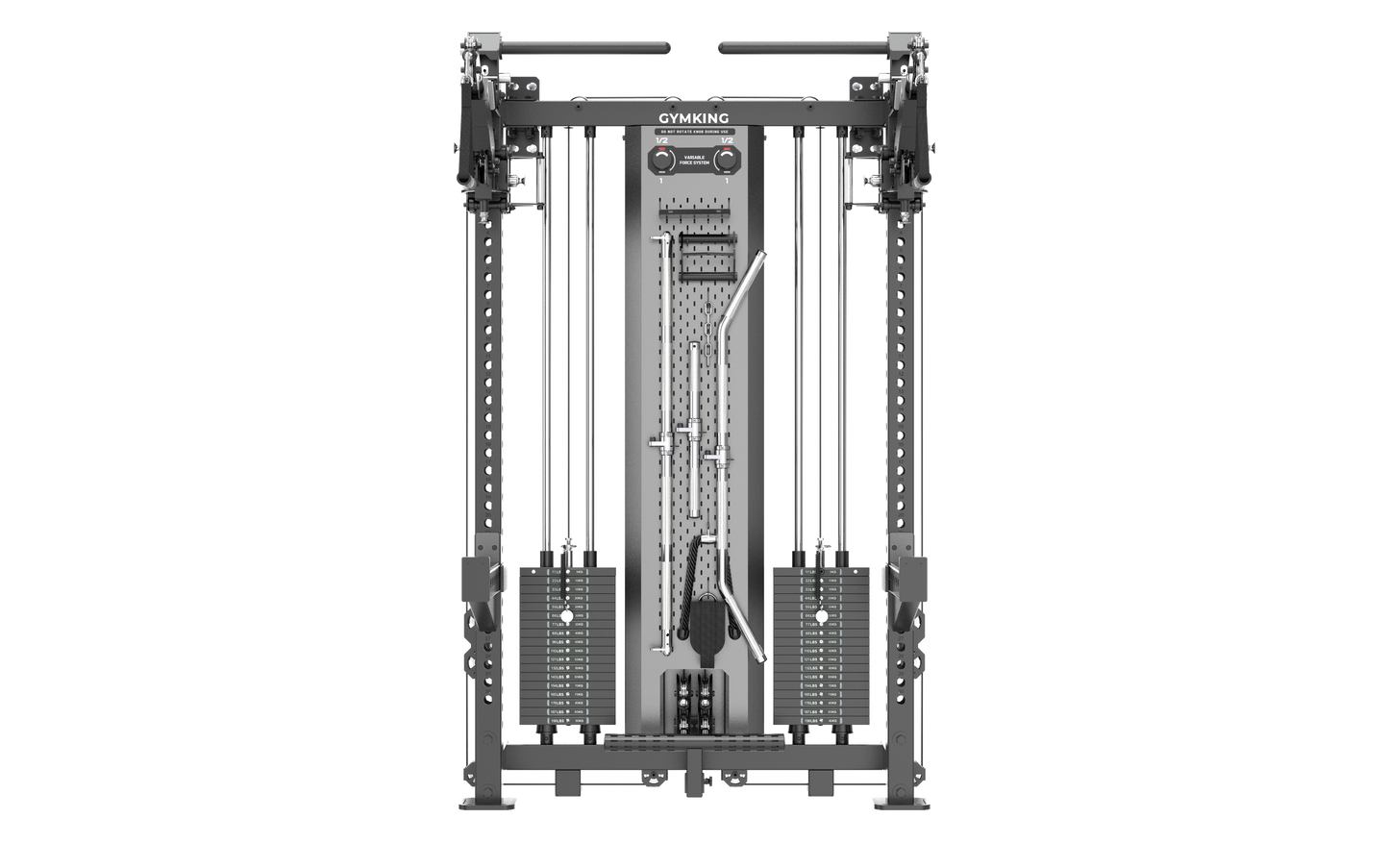

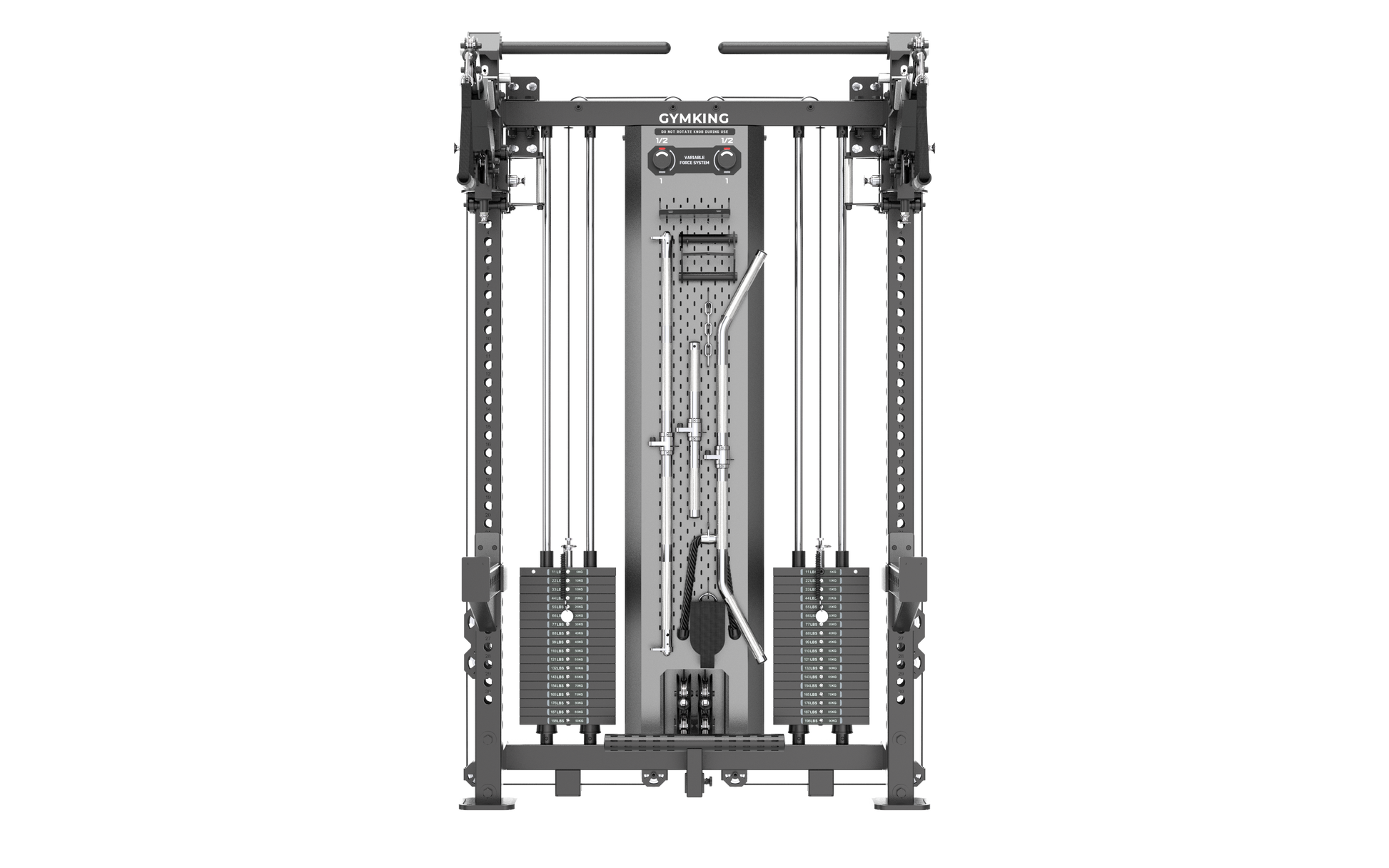

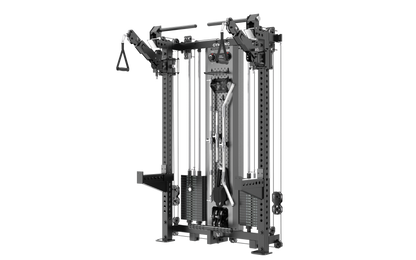

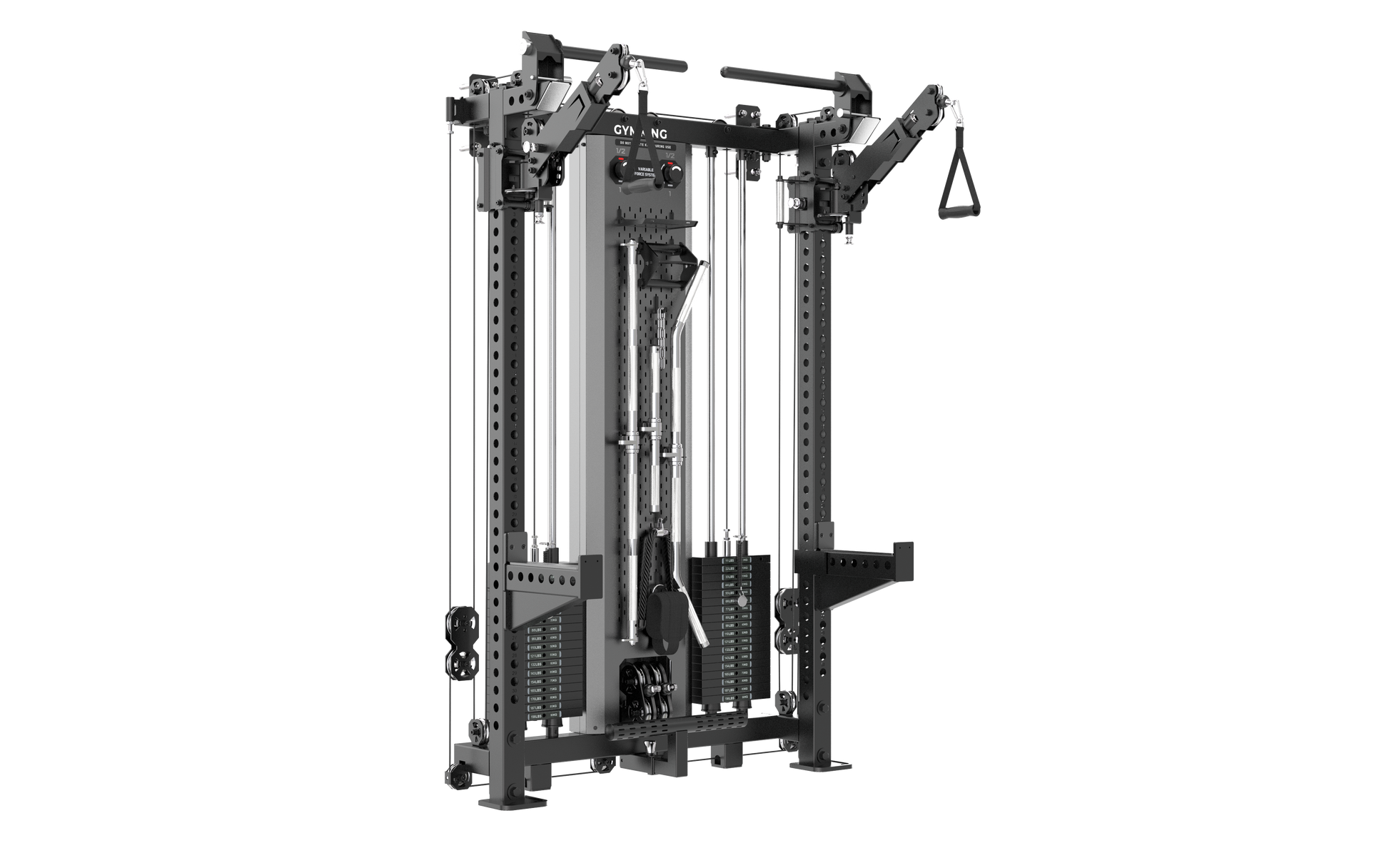

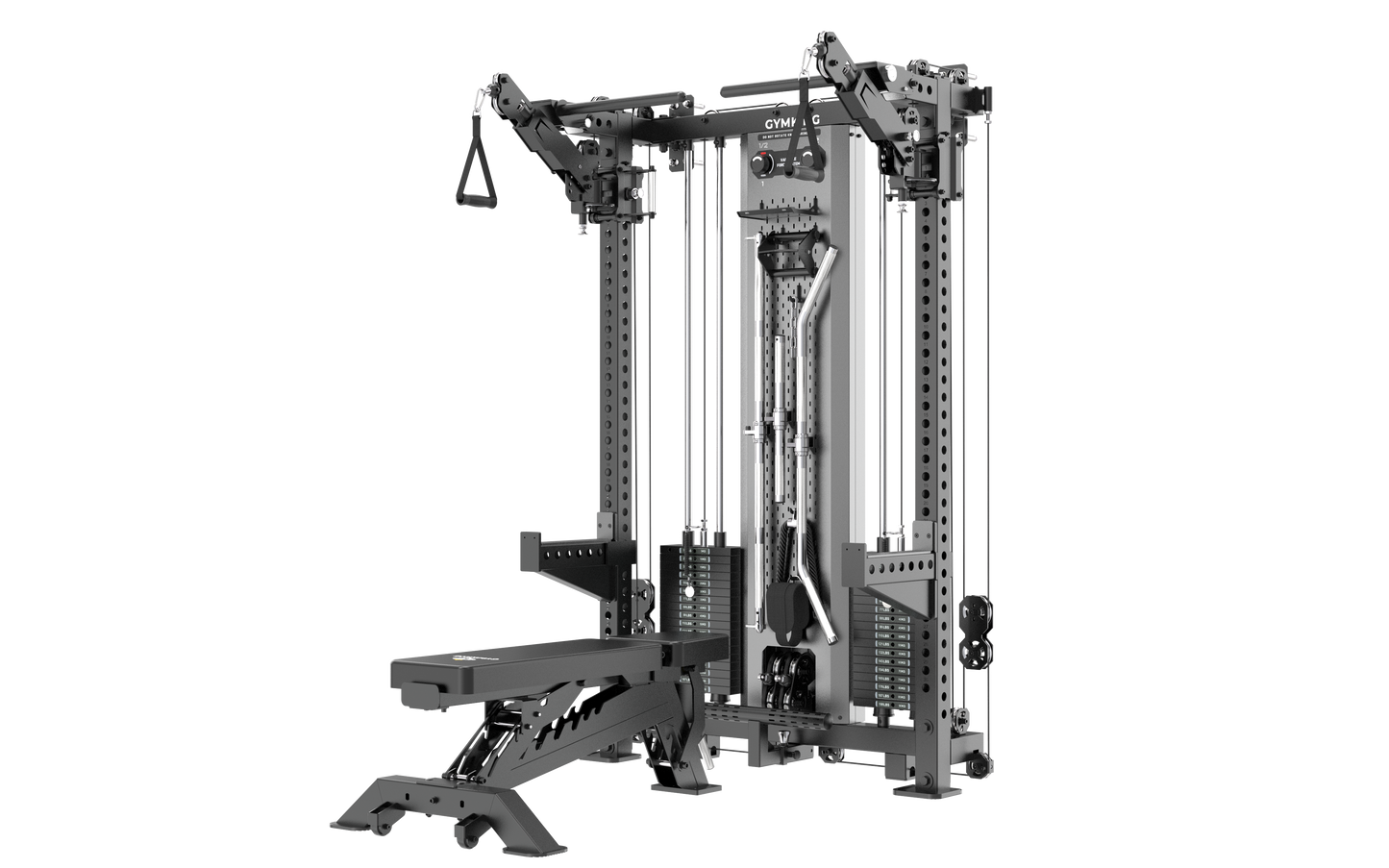

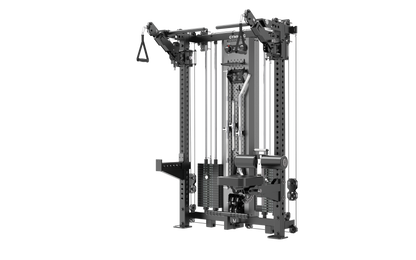

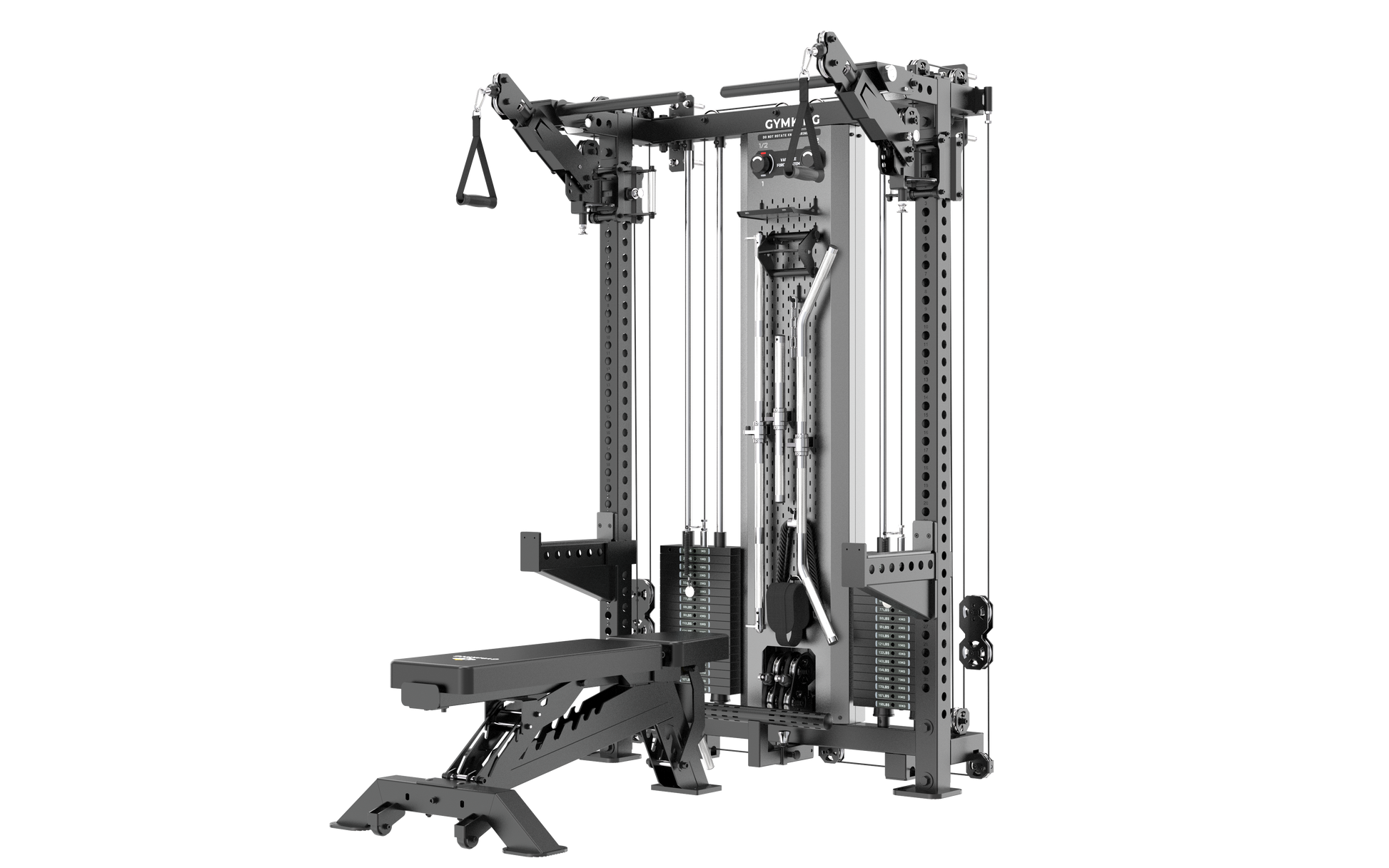

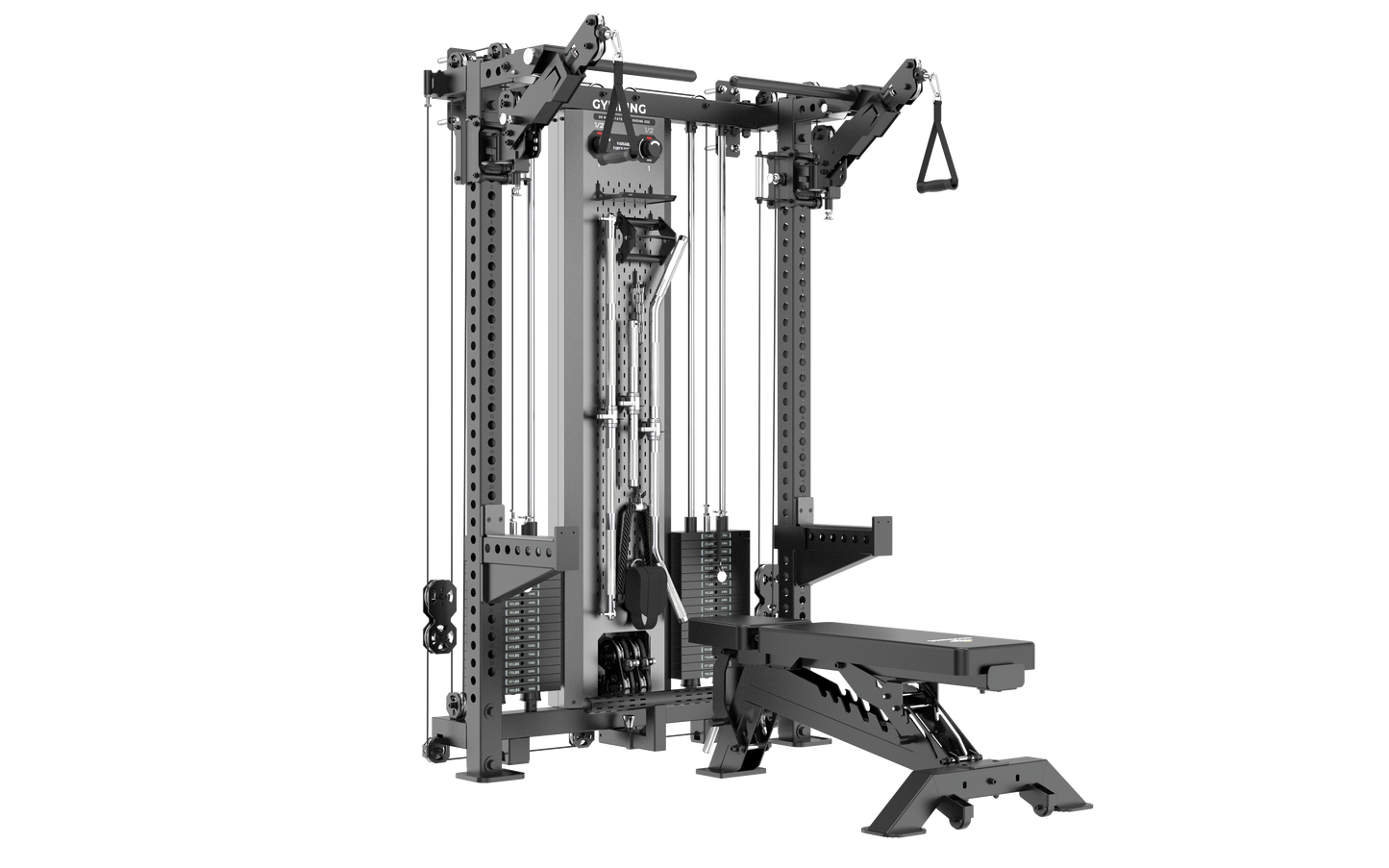

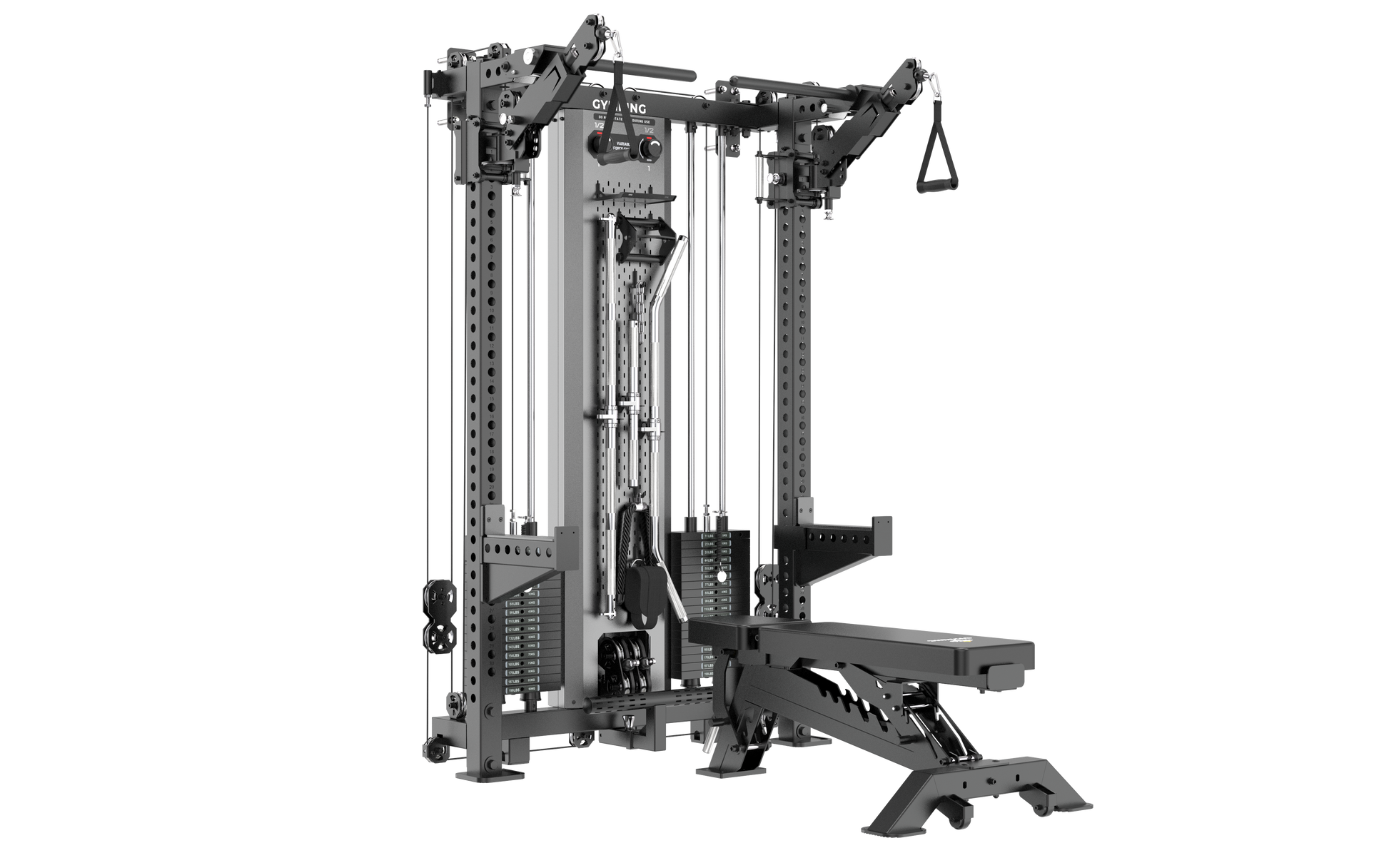

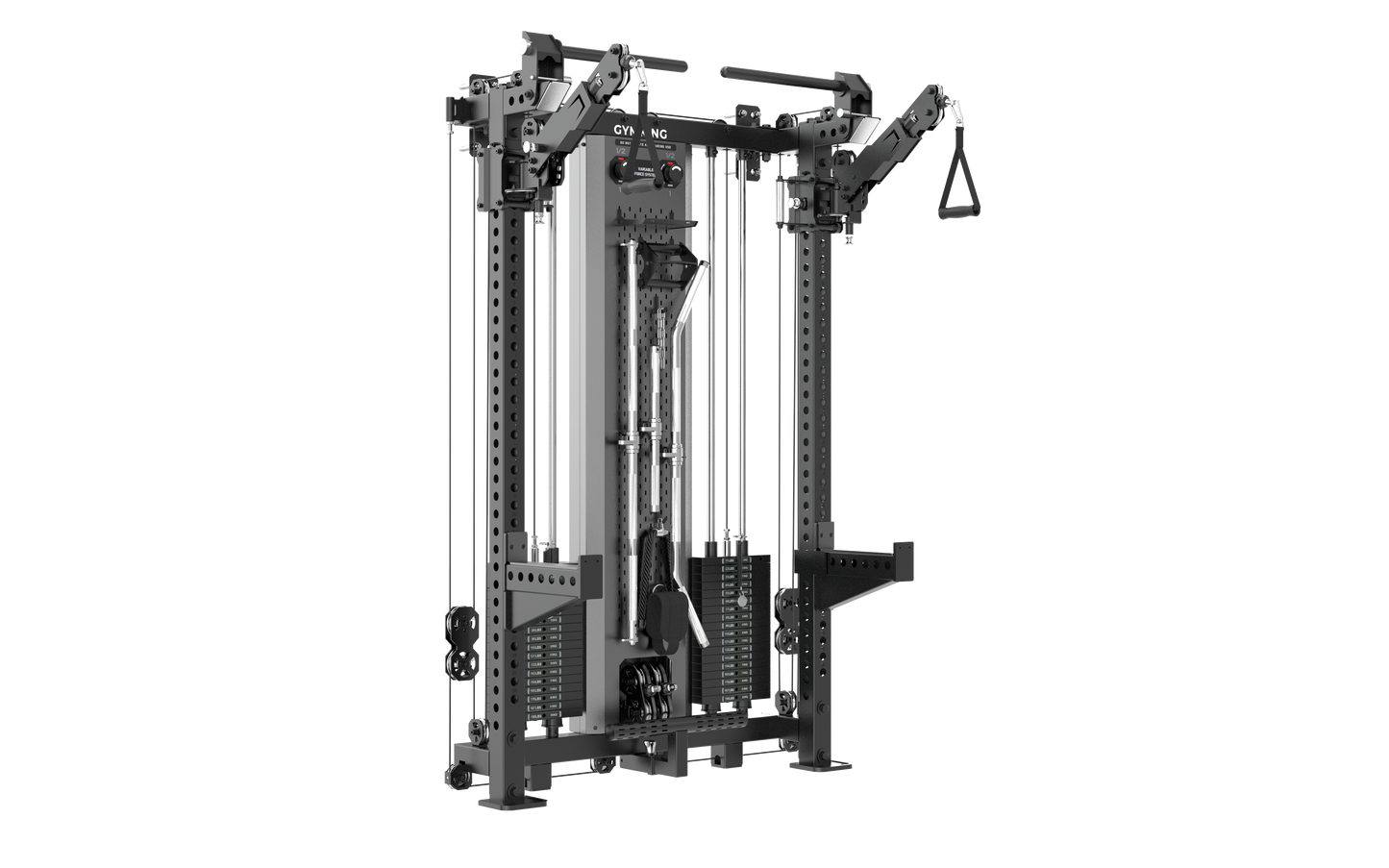

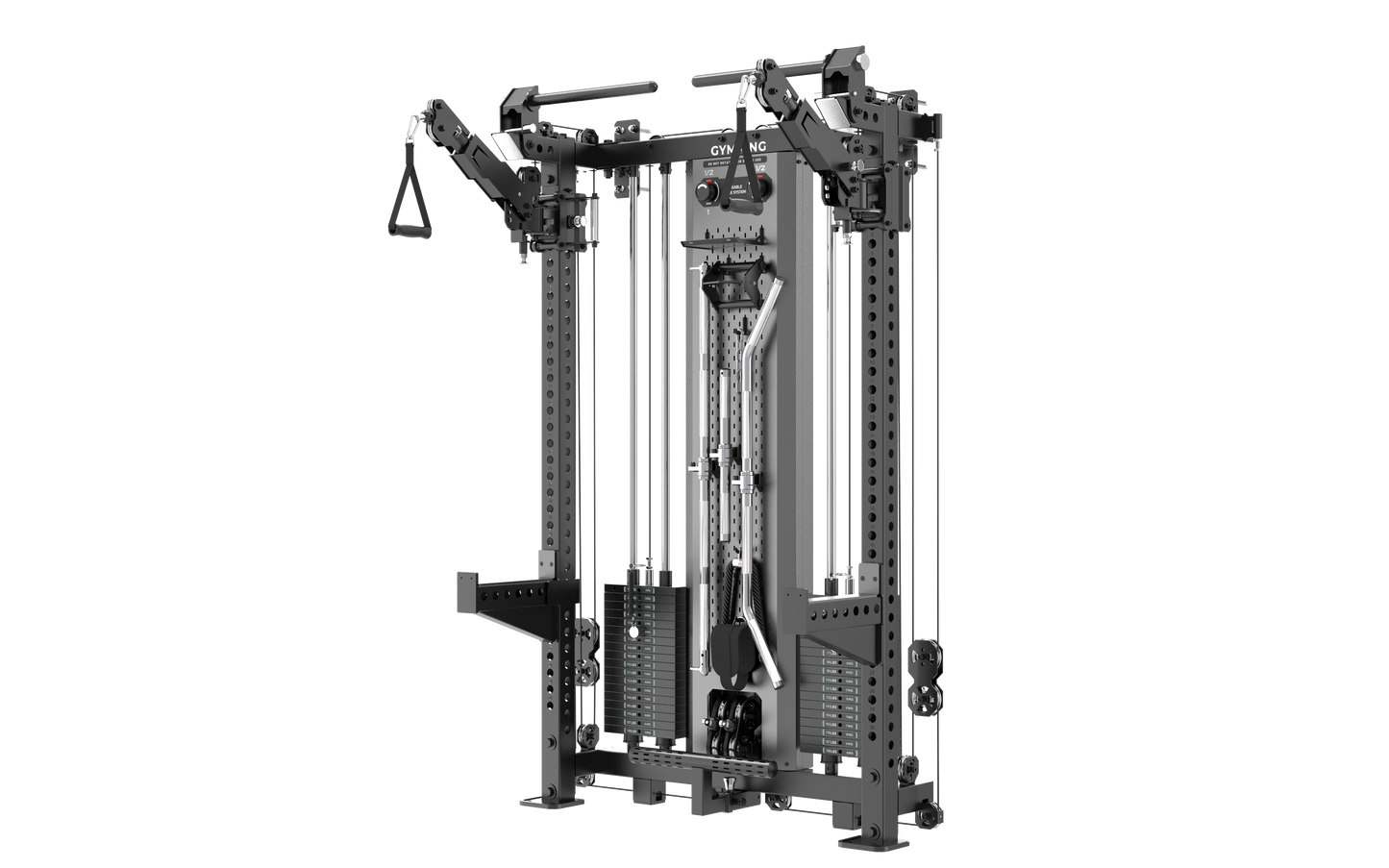

Gymking R3 PRO Multi Functional Trainer

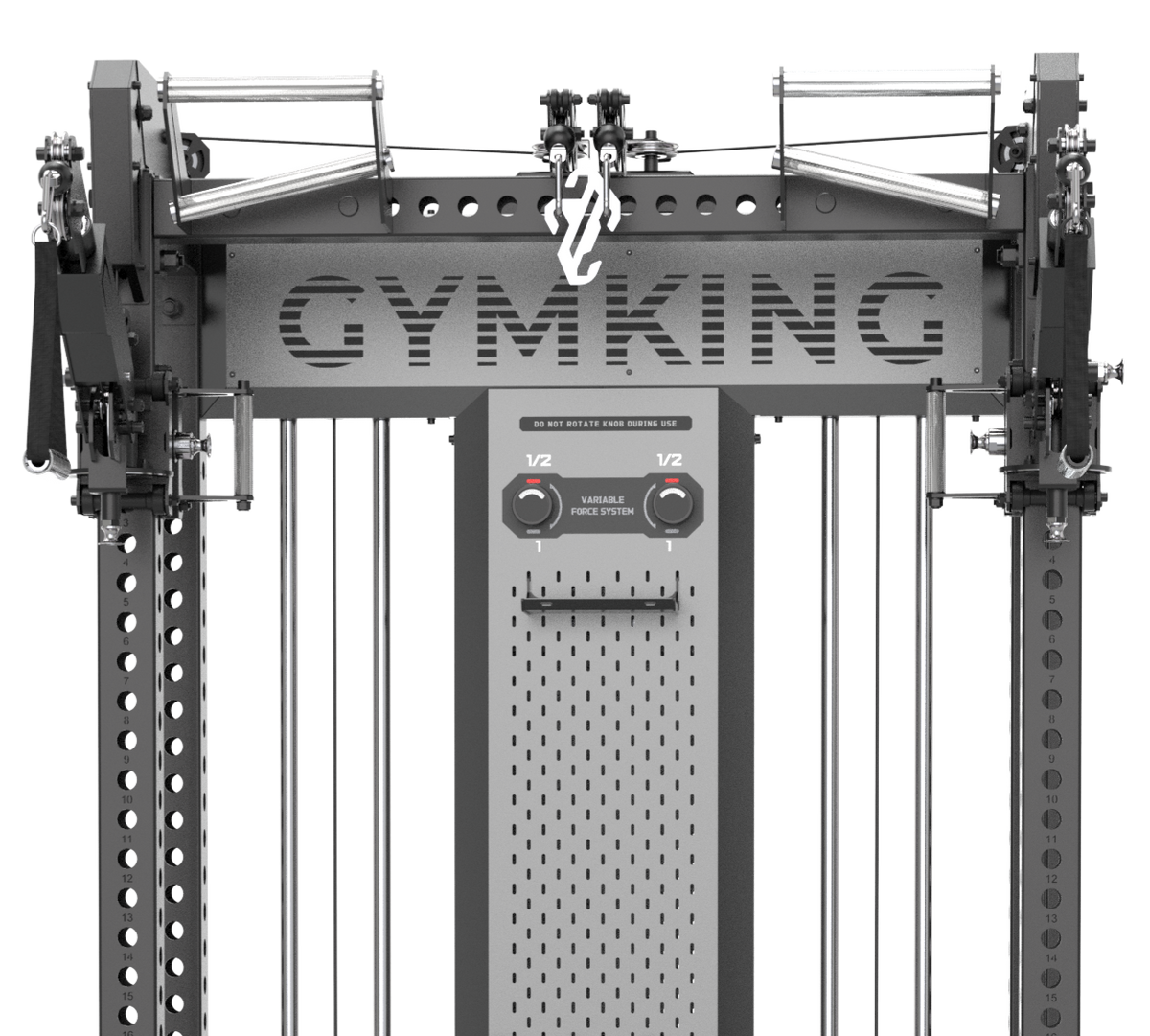

The Gymking R3 PRO is the most compact machine in the Gymking R Series: a wall-mounted dual-stack functional trainer that gives you full cable training from a depth of just 920mm. Two 90kg steel weight stacks, aluminium pulleys and the patented dual-ratio cable system deliver everything from heavy strength work to smooth functional and rehab training.
It mounts to the wall with the supplied lag bolts (timber) and sleeve anchors (brick or masonry), so it suits garages, apartments, PT studios and any space where every square metre counts.
Key features
- Dual 90kg weight stacks: 180kg maximum cable output

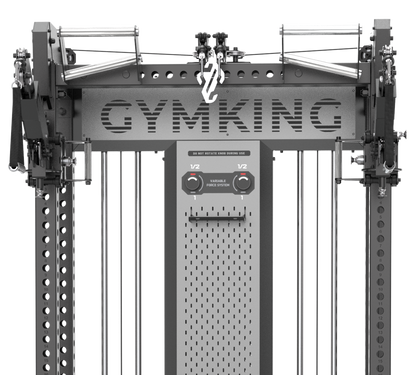

- Dual-ratio cable system: switch each side between 1:1 (full stack, heavy strength work) and 2:1 (half the resistance, twice the cable travel, for functional, rehab and high-rep work) in about a second
- Aluminium pulleys: smooth, quiet cable travel (the standard R3 uses nylon pulleys)
- Adjustable swing arms: 6-level vertical adjustment across a 90° range for presses, rows, pulldowns and flyes from almost any angle
- Spotter arms included: rated to 252kg (555lbs)
- Multifunctional bars: two bars that work as pull-up bars or a leg holder
- Low-position pulley and footrest bar for seated rows and lower-body cable work
- Integrated pegboard storage with tray, bar holders and U-hooks
- Wall-mounted design: hardware supplied for timber and brick walls
What's included
- Tricep rope
- Ankle strap
- LAT bar (chromed)
- Long straight bar (chromed)
- Short straight bar (chromed)
- V bar
- 2 x D handles
- 2 x 6-link chains
- 2 x spotter arms
- Footrest bar
- 2 x multifunctional bars (pull-up bars & leg holder)
- Storage tray
- 5 x storage bar holders
- 3 x U-hooks
- 8 x lag bolts and 10 x sleeve anchors for wall mounting
Specifications
- Dimensions: 2275mm L x 920mm D x 2200mm H (swing arms extended)
- Footprint: Approx. 2.10m²
- Weight stacks: 2 x 90kg
- Maximum cable output: 180kg
- Cable ratio: Switchable 1:1 / 2:1
- Pulleys: Aluminium
- Frame: 75 x 75mm steel, 3mm wall, 26mm holes
- Maximum user weight: 160kg
- Spotter arm maximum load: 252kg (555lbs)
- Pegboard hooks and tray: 10kg (22lbs) each
- Net weight: 331kg
- Gross weight: 375kg
- Installation: Wall-mounted
Shipping specifications
- Shipping: Australia-wide delivery
- Shipping weight: 375kg
- Shipping dimensions: Length: 2.2m x Width: 1.1m x Height: 0.5m
SKU: GK-R-3PRO
Warranty
Lifetime Frame Warranty. 2 Year for Moving Parts and Componentry.
Shipping Specifications
Height: 0.5
Length: 2.2
Width: 1.1
Weight: 375.0 kg
Share

Accessories for this machine
Add-ons designed to fit this machine. Sold separately.
-

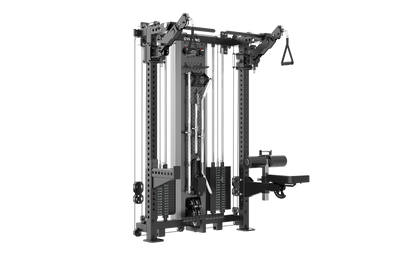

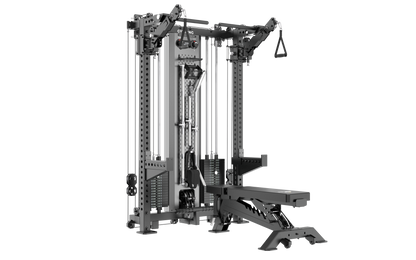

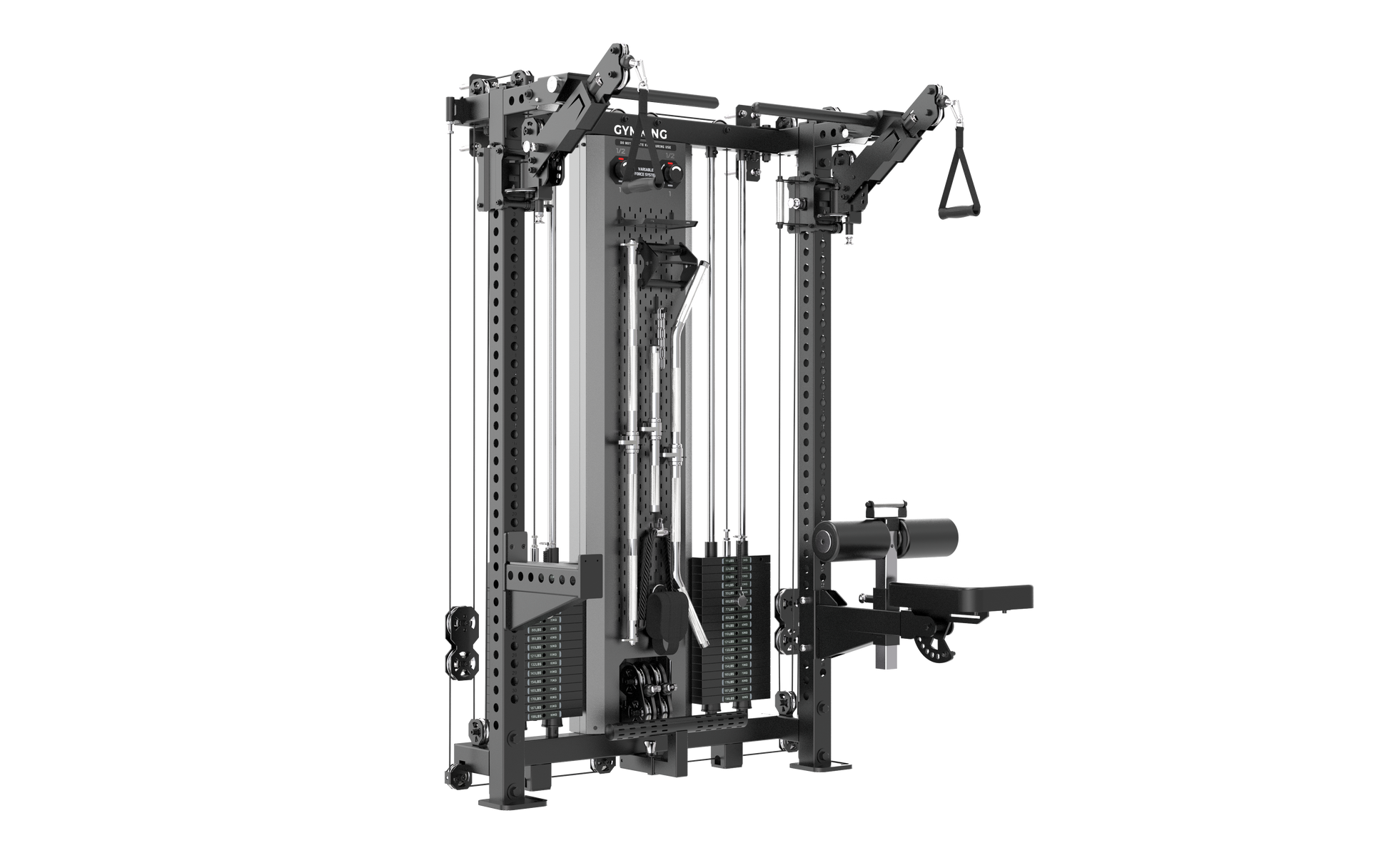

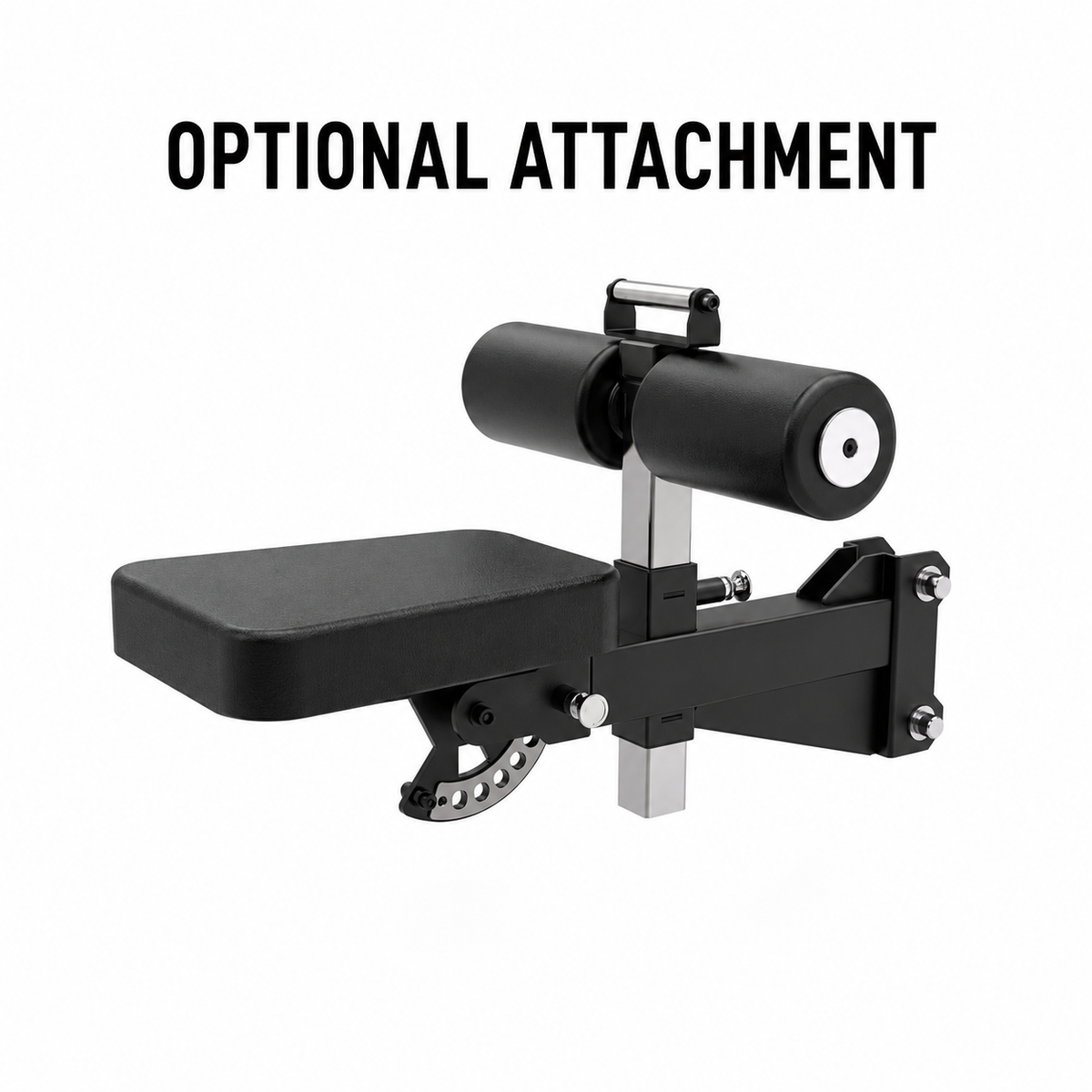

Gymking R Series Multi Functional Lat Seat Attachment
Regular price $349.00Regular price$449.00Sale price $349.00Sale -

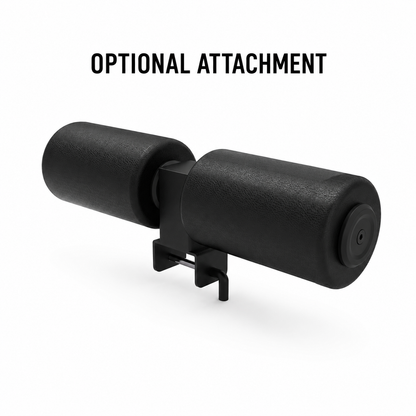

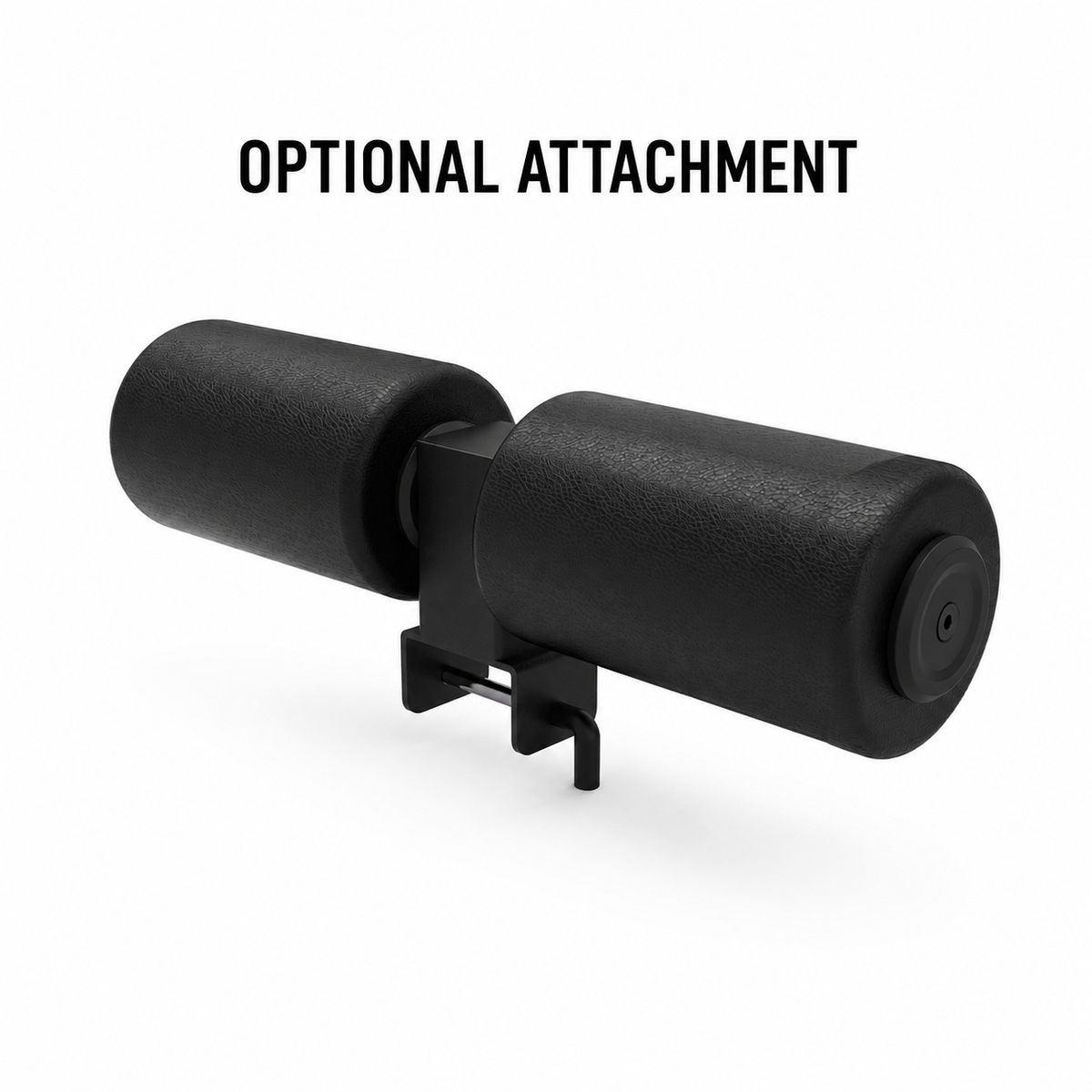

Gymking R Series Multi Functional Knee Holder
Regular price $99.00Regular price$129.00Sale price $99.00Sale -

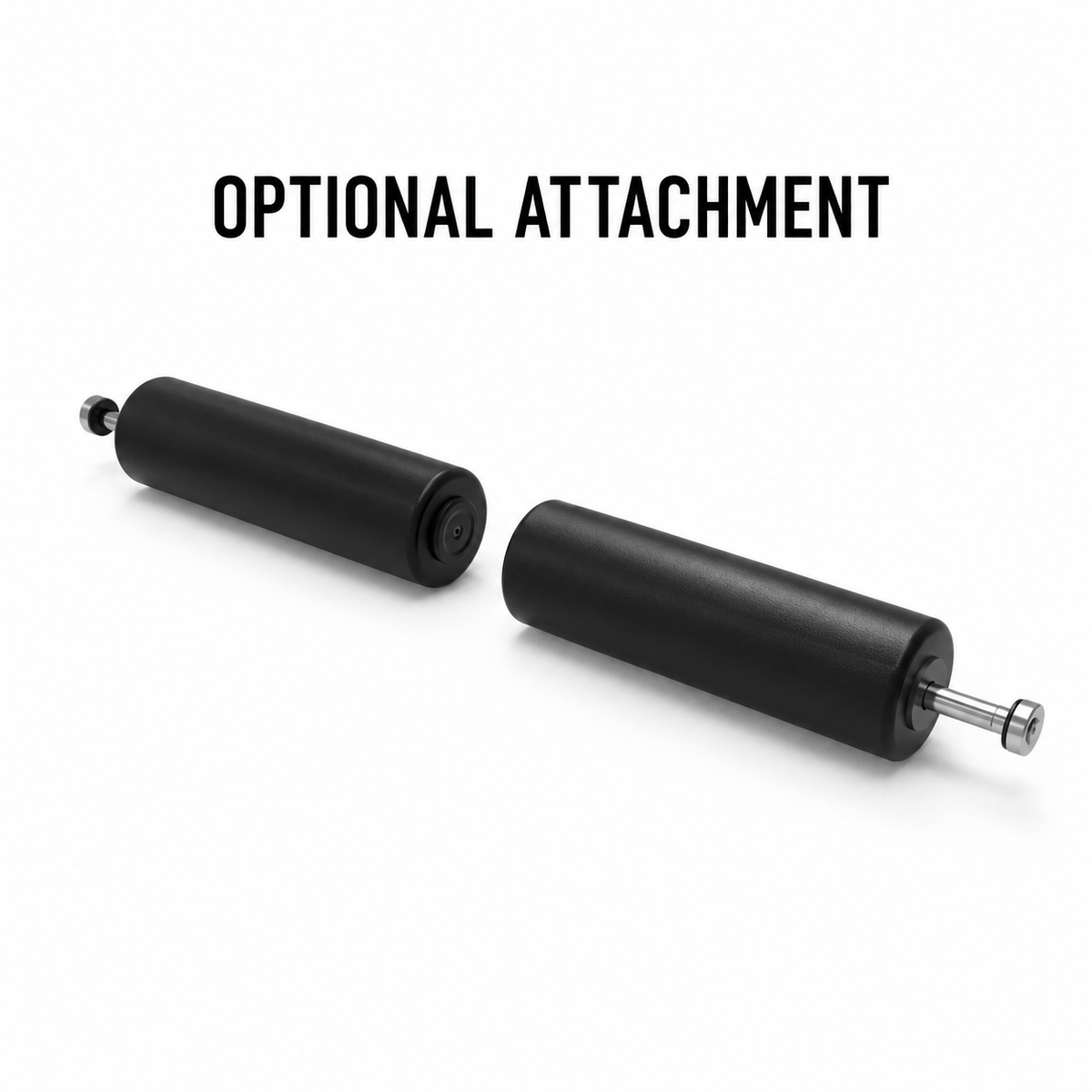

Gymking R Series Lat Pull Down Rollers
Regular price $199.00Regular price$249.00Sale price $199.00Sale
Frequently Asked Questions
Is the GymKing R3 PRO suitable for a home gym?
Yes. It is the most compact R Series model, wall-mounted with a depth of just 920mm, so it suits garages, apartments and PT studios where space is tight.
What is the benefit of the 1:1 and 2:1 cable ratio system?
- 1:1 gives you the full stack for heavy strength work such as rows, presses and pulldowns.
- 2:1 halves the resistance and doubles the cable travel, ideal for functional, rehab and high-rep work.
What weight stacks does it have?
Two 90kg weight stacks, for 180kg maximum cable output. No plates required.
What accessories are included?
- Tricep rope
- Ankle strap
- LAT bar, long straight bar and short straight bar (chromed)
- V bar
- 2 x D handles
- 2 x 6-link chains
- 2 x spotter arms
- Footrest bar
- 2 x multifunctional bars (pull-up bars & leg holder)
- Storage tray, 5 x bar holders and 3 x U-hooks
- 8 x lag bolts and 10 x sleeve anchors for wall mounting
What is the maximum user weight?
160kg. The included spotter arms are rated to 252kg (555lbs).
Which add-ons fit the R3 PRO?
- Lat Seat Attachment
- Knee Holder
- Lat Pull Down Rollers
Does it need to be wall mounted?
Yes. Lag bolts for timber and sleeve anchors for brick or masonry are supplied. Install it in line with the supplied instructions.
How does it compare to the R5 PRO and R7 PRO?
The R3 PRO is a wall-mounted functional trainer. The R5 PRO adds a free-standing half-rack frame, and the R7 PRO adds a Smith machine (0° or 7°) and power-rack frame.
