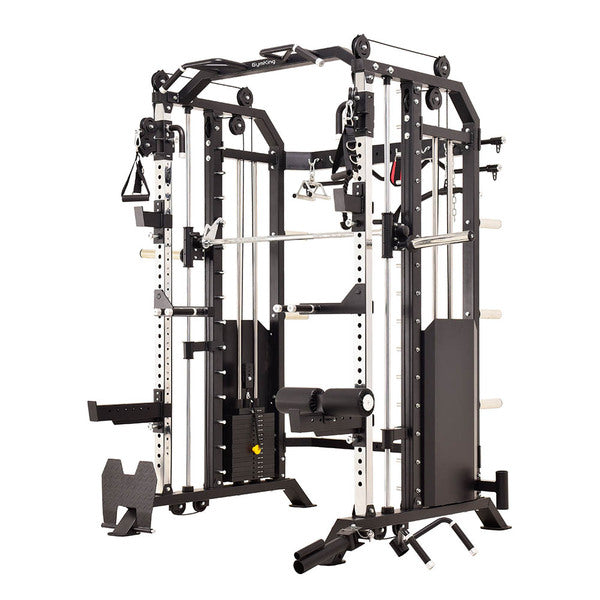

The GymKing GK-6000 is a commercial-grade, pin-loaded multi-function centre that packs a whole strength floor into one frame. It combines a linear bearing Smith machine, a dual-stack functional trainer, a power rack, a multi-grip chin-up bar, a lat pulldown and a seated row in a single footprint, so one machine covers cable work, guided free-weight lifts and bodyweight training.
Because it is pin-loaded, resistance comes from two built-in weight stacks you select with a pop-pin, so changing weight is instant, and the machine is fully self-contained, with no separate plates to buy or load. That fast, guided setup is what makes it a natural fit for commercial floors and PT studios, as well as home gyms that want quick, beginner-friendly cable training.
Browse our full Multi Functional Trainers range to compare all models. If you prefer the flexibility of training with your own Olympic weight plates, take a look at the plate-loaded GymKing GK-7000.
Key features
- Six stations in one frame: linear bearing Smith machine, functional trainer, power rack, multi-grip chin-up bar, lat pulldown and seated row, so a full-body workout runs from a single machine
- Dual pin-loaded weight stacks: two independent 90kg cast iron stacks with shrouds, selected with a pop-pin for instant, guided weight changes and no separate plates to load

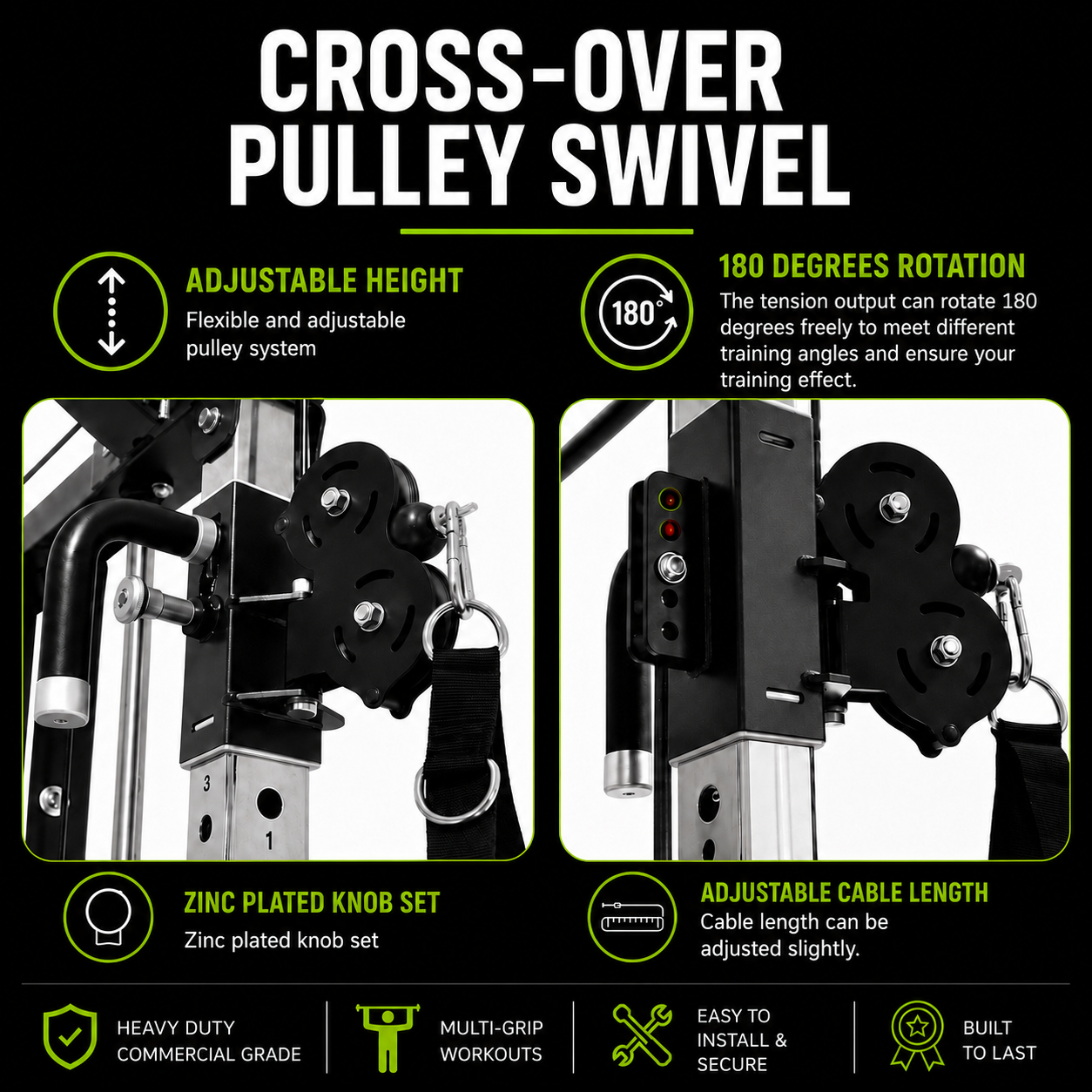

- Dual adjustable pulleys with a 2:1 cable ratio: smooth cable training for flyes, rows, pulldowns and functional movements, with adjustable pulley height to suit the exercise
- Linear bearing Smith machine: a smooth, guided bar path for safe, controlled lifting, and it accepts standard and Olympic weights
- Commercial-grade steel frame: heavy-duty powder-coated construction with a 2000lb tensile-strength cable and smooth cast pulleys, built for daily commercial use
- Included attachment pack: ready to train on delivery, with lat pulldown bar, straight bar, two adjustable single handles, ankle strap, close-grip triangle, tricep rope, torso handles and a revolving curl or row bar
Specifications
- Type: Pin-loaded commercial multi-function centre (weight stack)
- Stations: Linear bearing Smith machine, functional trainer, power rack, multi-grip chin-up bar, lat pulldown, seated row
- Weight stacks: Dual (2 x) 90kg pin-loaded cast iron stacks with shrouds
- Cable ratio: 2:1
- Cable: 2000lb tensile strength with smooth cast pulleys
- Smith machine capacity: 350kg
- Power rack J-hooks and safeties: 350kg

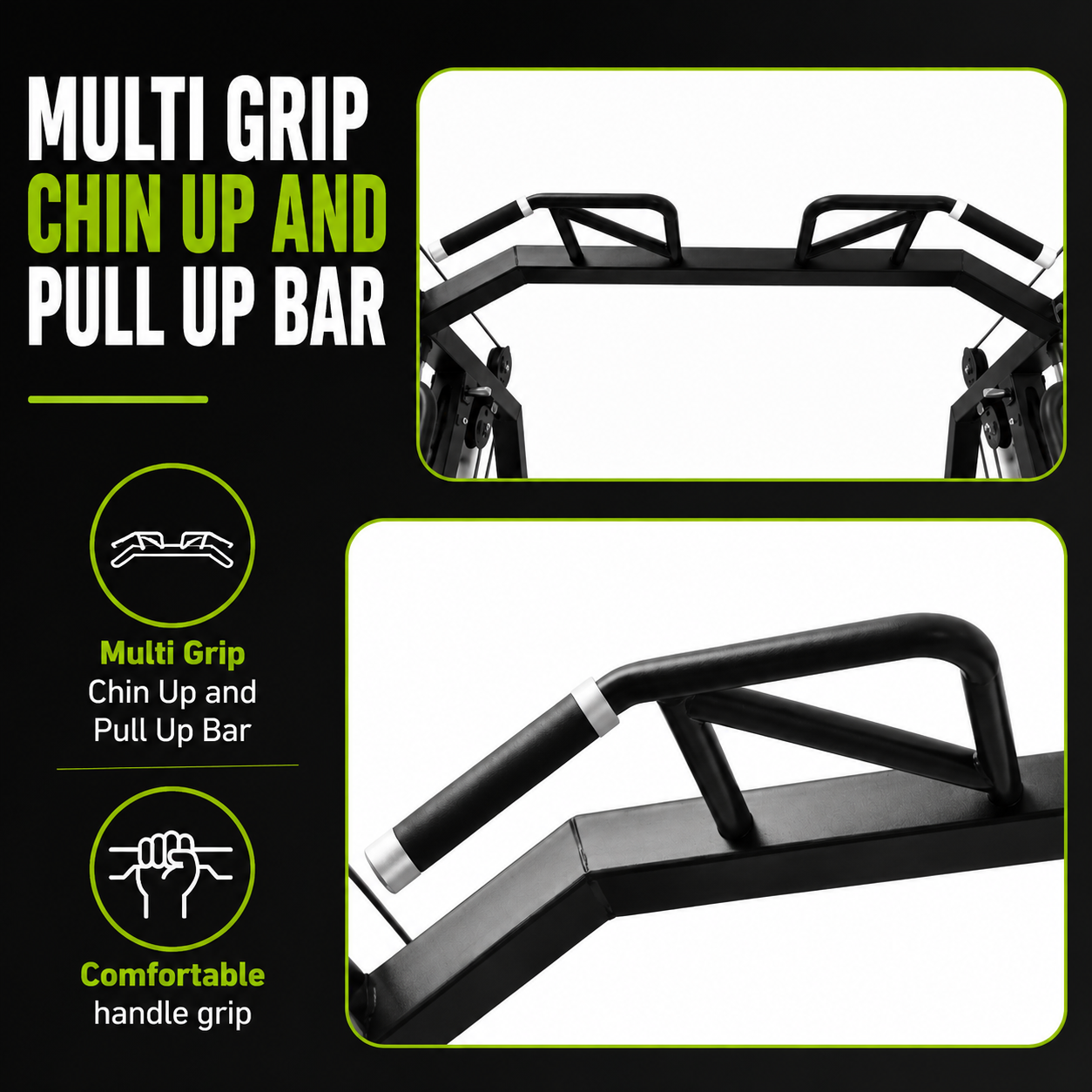

- Chin-up bar capacity: 160kg
- Frame: Heavy-duty powder-coated steel

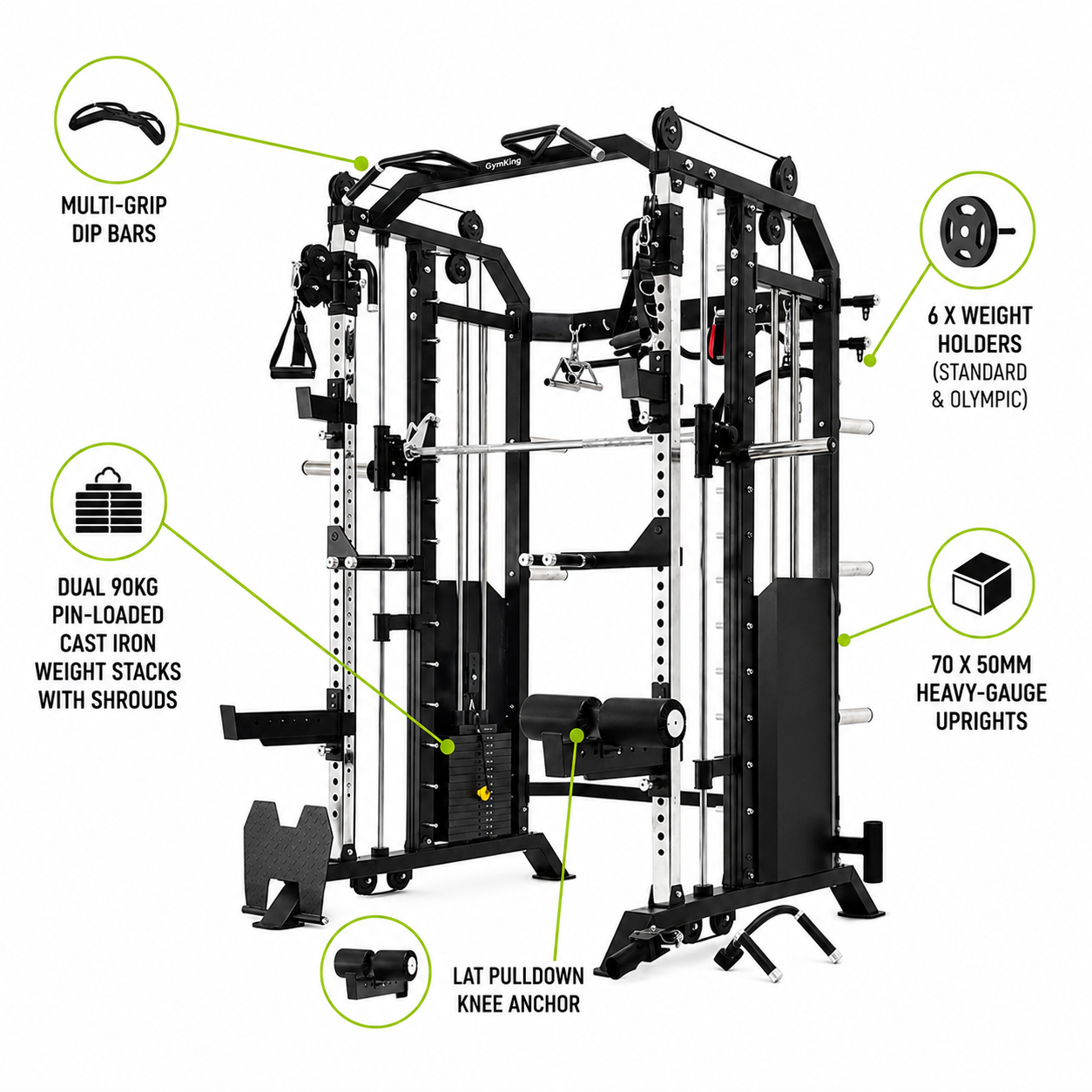

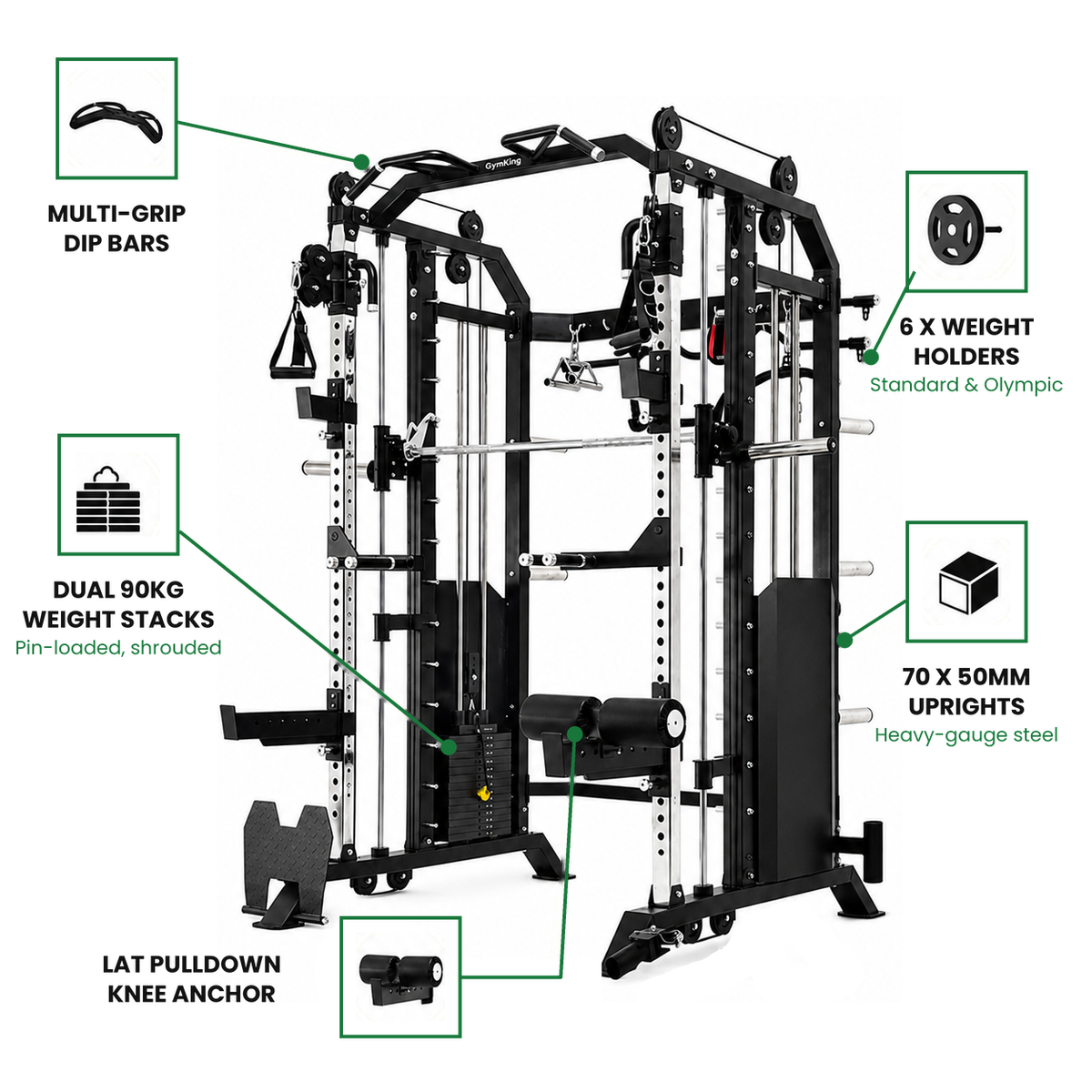

- Included stations and hardware: Torsonator, multi-grip dip bars, 6 x weight holders (standard and Olympic), 2 x bar holders, checker-plate seated row footplate, lat pulldown knee anchor rollers

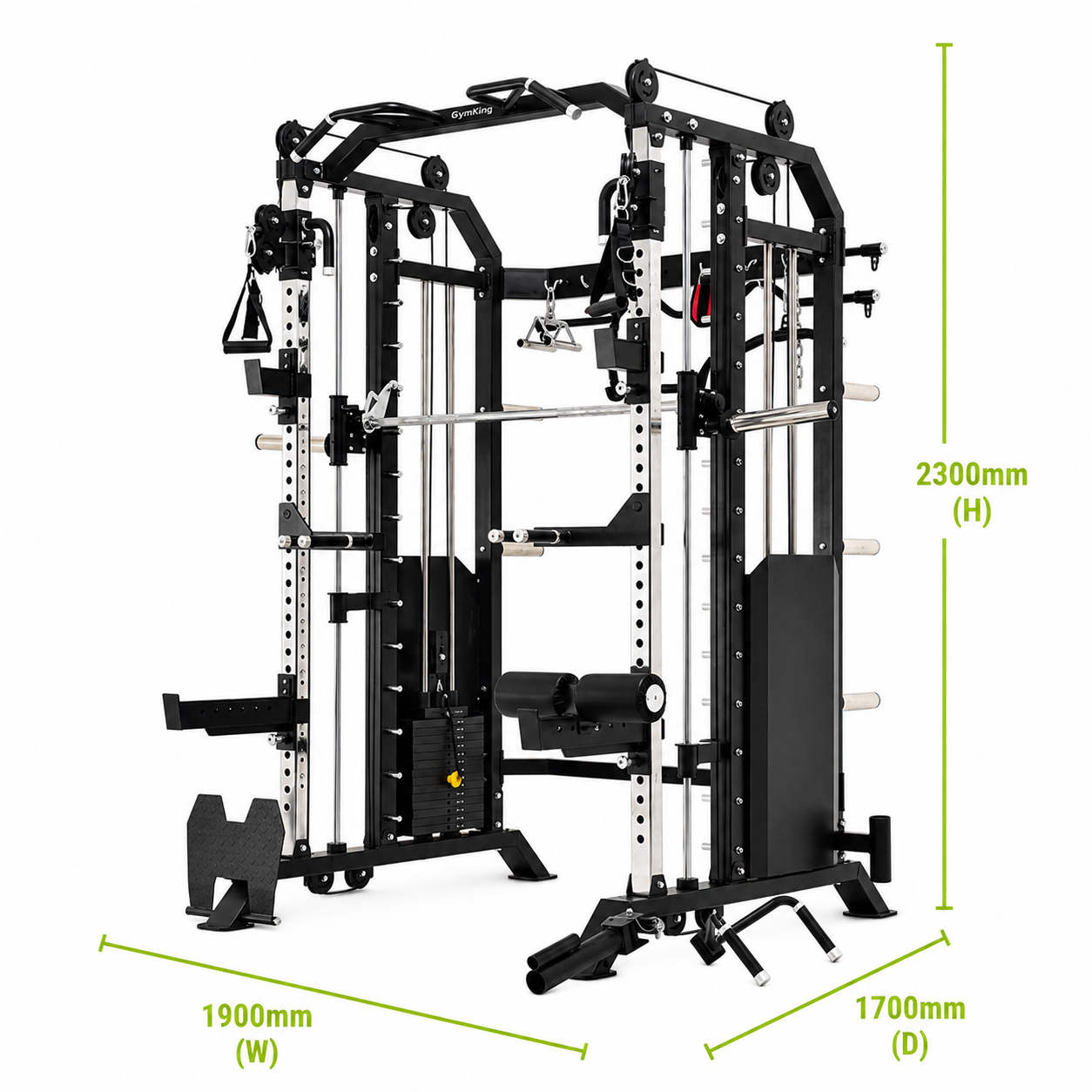

- Assembled dimensions: Approx. 2300mm high x 1900mm wide x 1700mm depth
Shipping specifications
- Shipping: Australia-wide delivery
- Dispatch: Under 48-hour dispatch
- Shipping weight: 250kg
- Shipping Specifications: Height: 1.0m x Length: 2.29m x Width: 1.2m
Optional Attachments (Sold Separately)
SKU: GK-6000
Shipping Specifications
Height: 1.0
Length: 2.29
Width: 1.2
Weight: 450.0 kg
Share
Looking for the complete setup? Our All In Package includes all the attachment, giving you everything you need to expand your workouts with one convenient purchase.
Why it works: pin-loaded versus plate-loaded
The main decision when choosing a multi-functional trainer is whether a pin-loaded or plate-loaded model best suits your training style. The GymKing GK-6000 is pin-loaded, featuring dual built-in weight stacks that allow you to change resistance instantly with the pull of a selector pin. This makes workouts faster and more convenient, particularly for circuit training, commercial gyms, PT studios and anyone sharing the machine with multiple users. The guided weight stacks also create a tidy, self-contained setup with no need to load or remove weight plates between exercises.
If you prefer training with your own Olympic weight plates, the GymKing GK-7000 offers the same commercial-quality frame and training stations in a plate-loaded design. It’s an excellent choice for lifters who already own Olympic plates or simply prefer a plate-loaded resistance system. Both machines deliver an exceptional training experience. The best option comes down to how you like to train.
Who the GK-6000 suits
- Commercial gyms wanting fast, guided cable training that stands up to high-traffic use
- PT and boutique studios moving quickly between clients, where instant pop-pin weight changes matter
- Home gyms that want a self-contained machine with no separate plates to buy, load or store
- Beginners and mixed-ability users who benefit from guided, selectorised movement
Before you buy, it’s important to check the space. allow room for the frame footprint plus clearance to use the cables, the Smith bar and the rack. Because the stacks are built in, you do not need to budget for plates as well.
FAQs
What is a pin-loaded multi-functional trainer?
A pin-loaded multi-functional trainer has one or more built-in weight stacks, and you set the resistance by moving a selector pin up or down the stack. It combines several strength stations, a cable functional trainer, plus a Smith machine, rack and pulling stations, into one frame. The GK-6000 is a commercial-grade, pin-loaded version, so it is fast to adjust and fully self-contained.
What is the difference between pin-loaded and plate-loaded functional trainers?
A pin-loaded trainer like the GK-6000 features built-in weight stacks and a selector pin, allowing you to change resistance instantly without handling weight plates. This makes it ideal for fast-paced workouts, commercial gyms and PT studios where quick weight changes are important. A plate-loaded trainer like the GK-7000 uses Olympic weight plates, giving you the flexibility to train with your own plates while typically offering a lower purchase price than an equivalent weight stack model. The best choice comes down to your training style, whether you prefer the convenience of instant weight changes or the flexibility of a plate-loaded system.
How heavy are the GK-6000 weight stacks?
The GK-6000 has two independent cast iron weight stacks, listed at 90kg per side, so you get separate resistance on each pulley for cable work. If you regularly need more than the stack provides, the plate-loaded GK-7000 removes the cap by using your own plates.
What exercises can you do on the GK-6000?
A lot. The functional trainer covers cable flyes, rows, pulldowns, curls, triceps work and functional patterns. The Smith machine handles guided squats, presses and rows. The power rack allows free-weight barbell work, and the chin-up bar, lat pulldown and seated row add back and pulling movements. Between the stations, it covers a full-body strength program from one machine.
Is the GK-6000 suitable for a commercial gym?
Yes. It is a commercial-grade machine, and the fast pop-pin weight changes and guided movement suit high-traffic floors and PT studios where users move quickly between exercises and clients. The dual stacks, 2000lb cable and heavy-duty powder-coated frame are built for daily commercial use. Just confirm you have the floor space for the frame and its clearances.
