Gymking X3 Pro Multi Functional Trainer
🏋️ PRE-ORDER — Estimated Dispatch end of November. Order now to secure your unit.

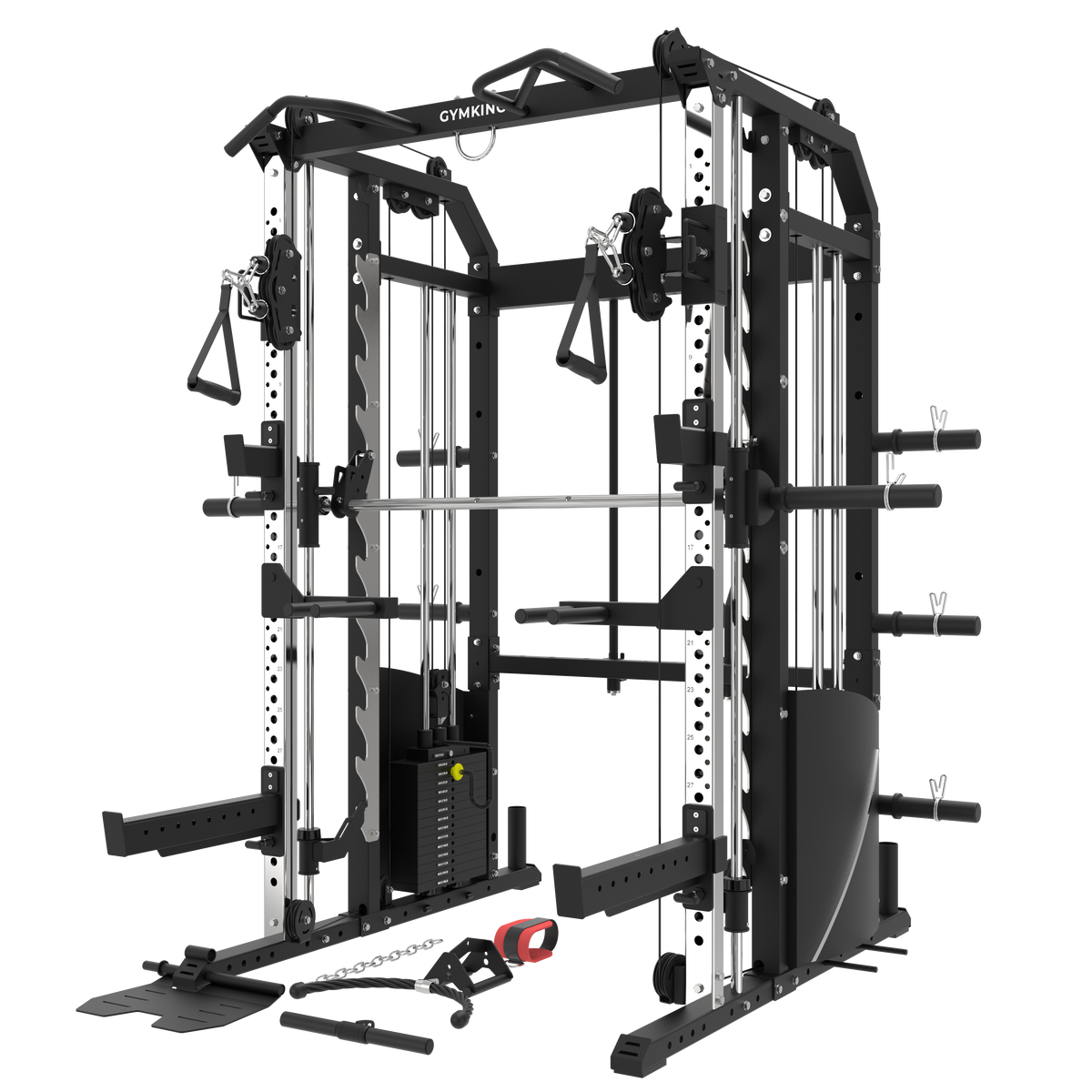

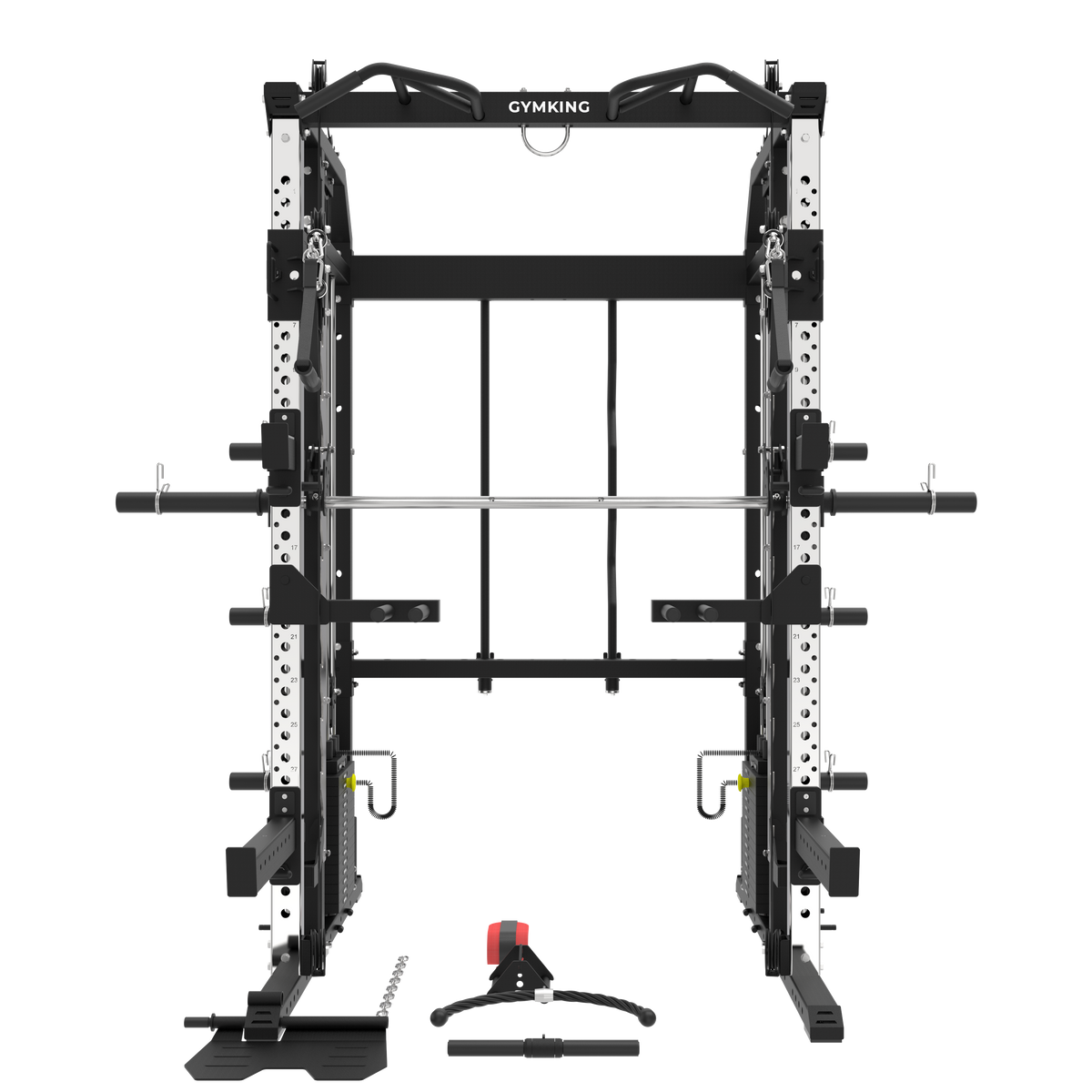

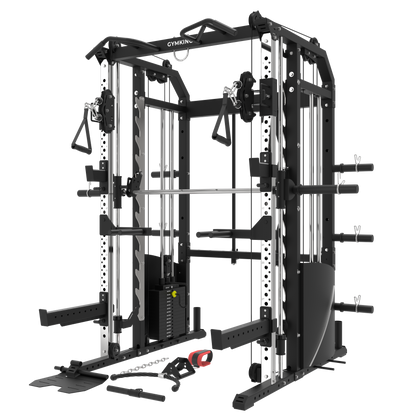

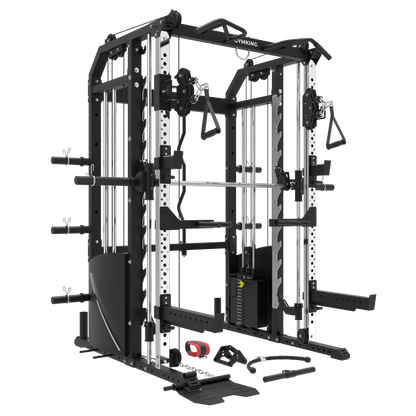

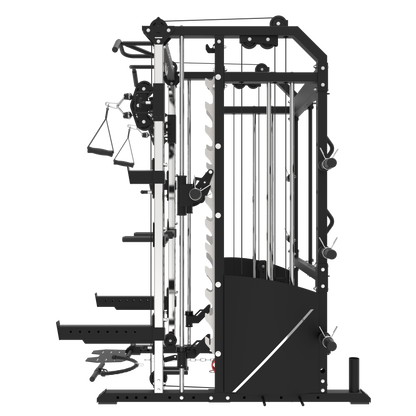

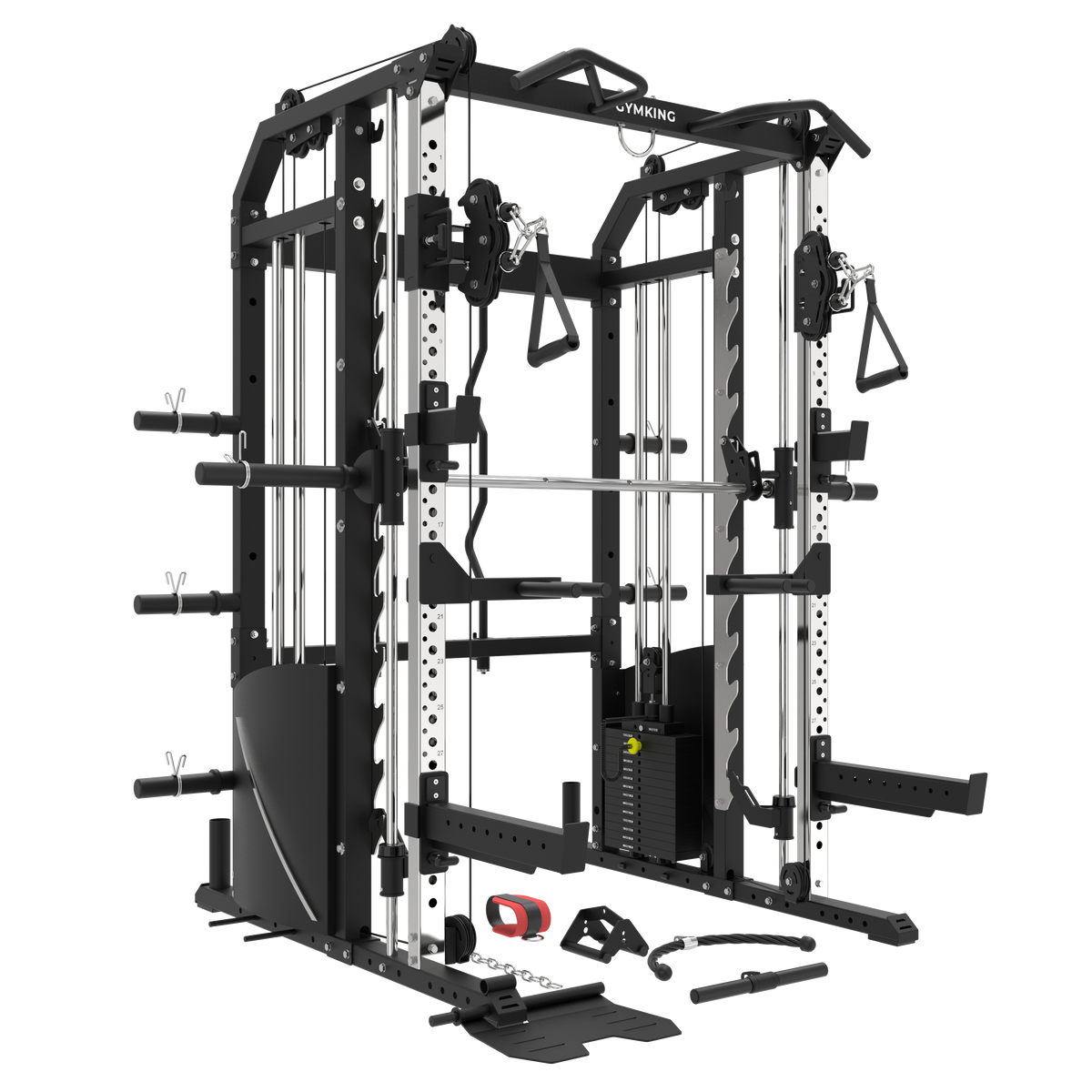

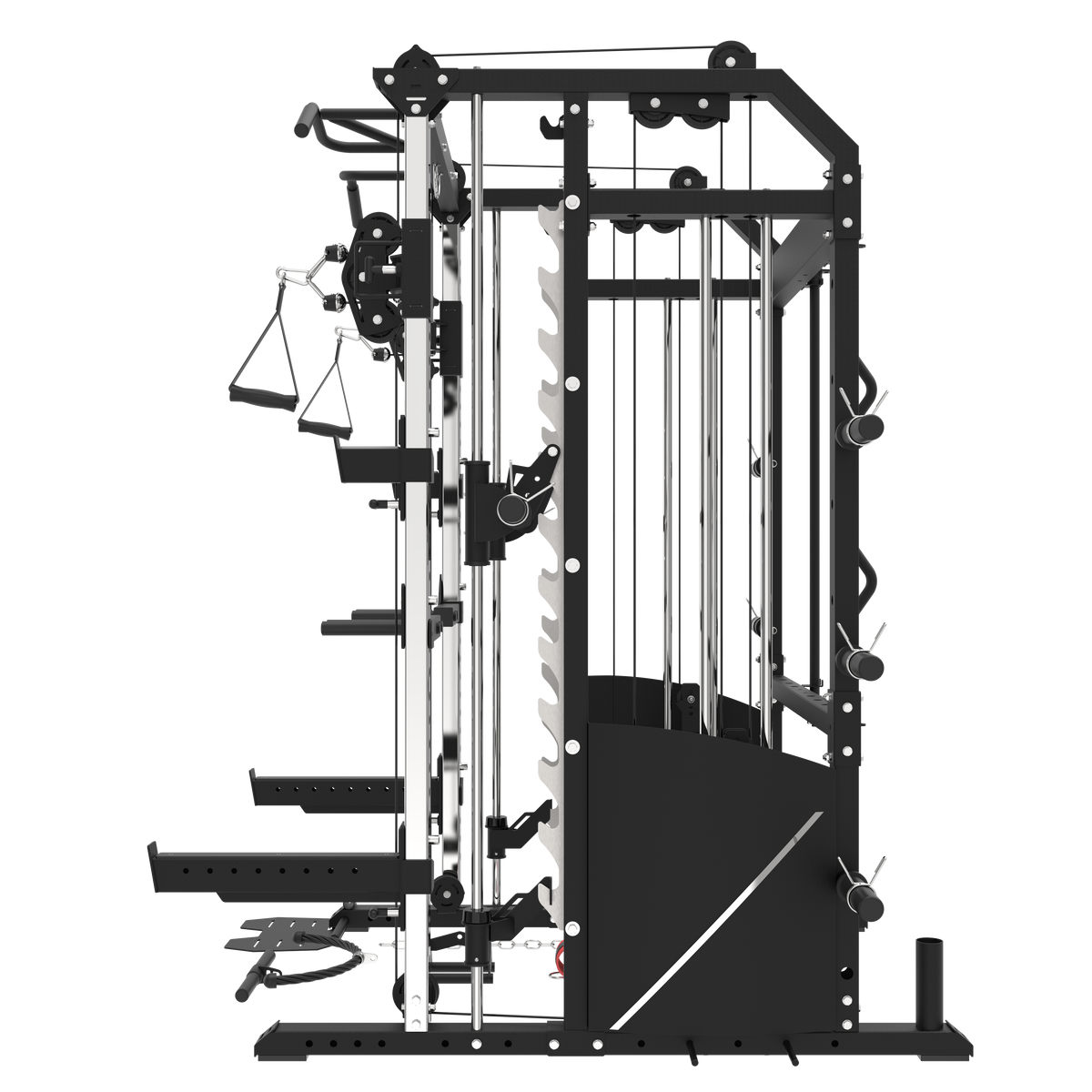

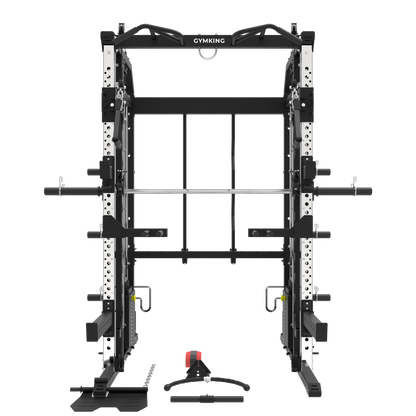

The Gymking X3 Pro Multi Functional Trainer is a pin-loaded all-in-one that combines a Smith machine, a power rack and a dual-stack functional trainer in one black frame with silver uprights. Two 90kg steel weight stacks drive a patented interchangeable cable system that switches between 1:1 and 2:1 ratios, so the same machine handles heavy compound cable work and lighter isolation movements.
Around that core you get a linear-bearing Smith machine with a knurled aluminium bar, J-hooks and 8-position spotter arms, multi-angle pull-up handles, adjustable dip handles, a reversible metal footplate and six plate storage horns. It suits home gyms, garage gyms and PT studios that want a complete strength setup from one footprint.
Browse our full Multi Functional Trainers range to compare all models
Key features
- Three machines in one: Smith machine, power rack and functional trainer, plus pull-up and dip stations
- Dual 90kg steel weight stacks: two independent stacks in 6kg increments, with metal covers and steel cable stoppers that keep the cable seated for a smoother pull

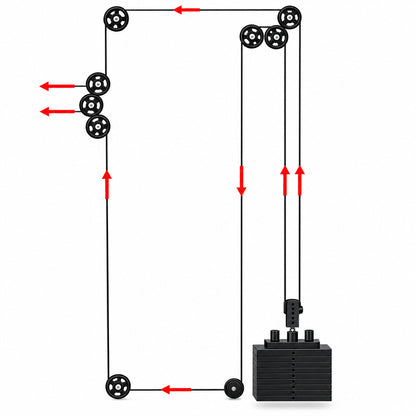

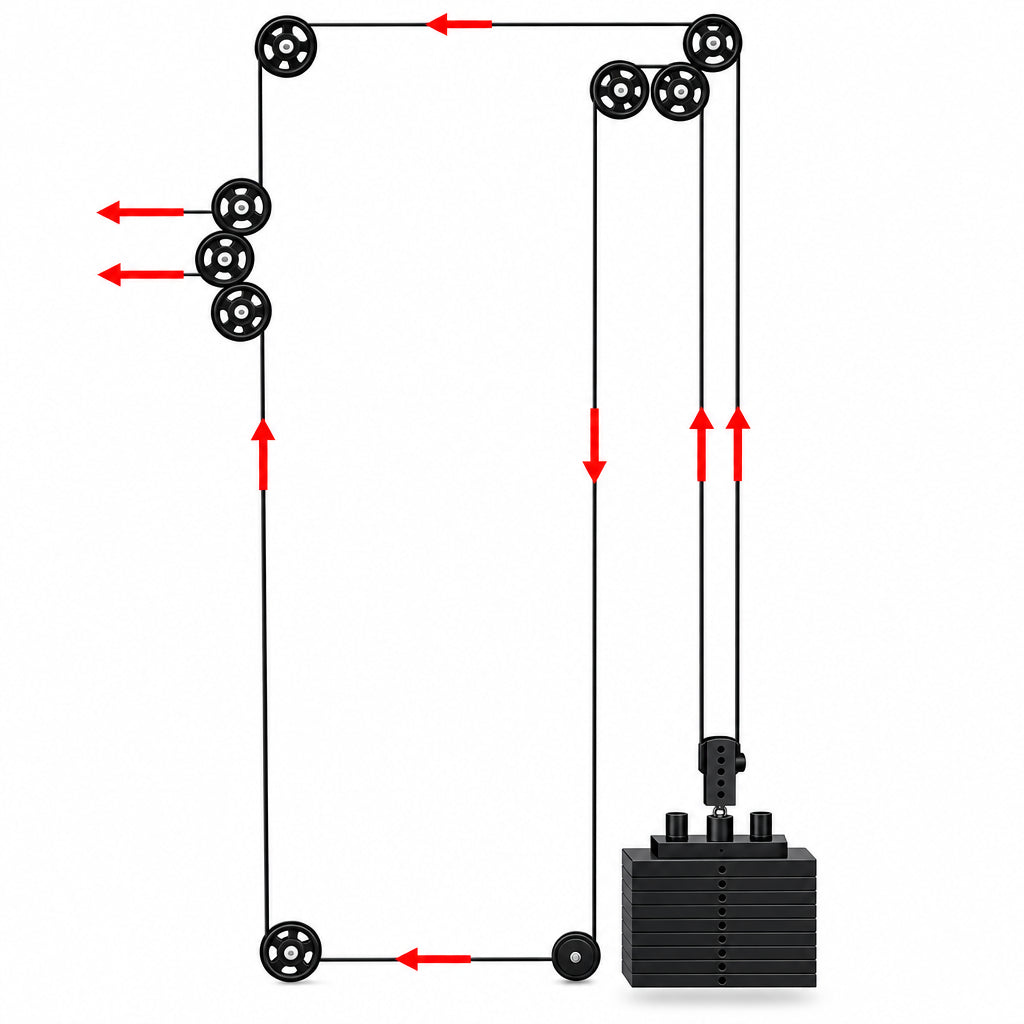

- Interchangeable 1:1 / 2:1 cable ratio (patented): use 1:1 for full stack resistance on heavy movements such as squats, deadlifts and lat pulldowns, or 2:1 for half the resistance with twice the cable travel, ideal for face pulls, lateral raises and smaller muscle groups
- 180° swivel crossover pulleys: pulley brackets rotate freely to follow your line of pull, with numbered height positions, an adjustable knob for quick changes and a cable limit rod that stops the cable jumping out
- Linear-bearing Smith machine: silent built-in linear bearings on solid hard-chrome guide rods, self-releasing hooks that rack and unrack along a stainless steel toothed plate, and a flexible limit bar that stops the bar tipping
- Knurled aluminium Smith bar: full-length knurling for grip in any hand position, and it will not rust
- Power rack safety: J-hooks plus spotter arms with ABS wear pads, adjustable across 8 positions at 50mm spacing
- Multi-angle pull-up handles: angled grips with rubber non-slip handles, plus a centre anchor ring
- Adjustable dip handles: non-slip grips that set to a wide or narrow position
- Reversible non-slip footplate: 5mm metal footplate for seated rows and low cable work, flips up out of the way when not in use
- Storage and band training: six plate storage horns for standard and Olympic plates, plus resistance band loops for banded work

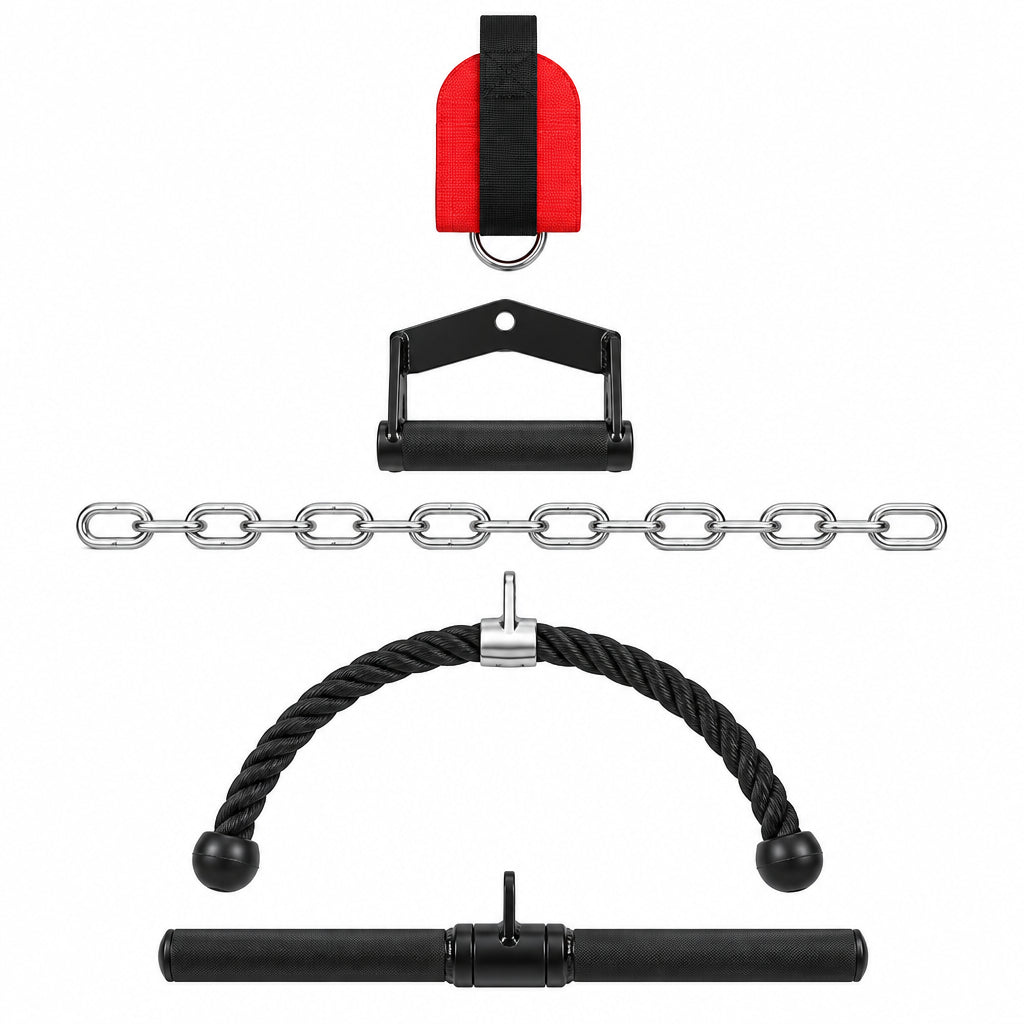

What's included
- Knurled aluminium Smith machine bar

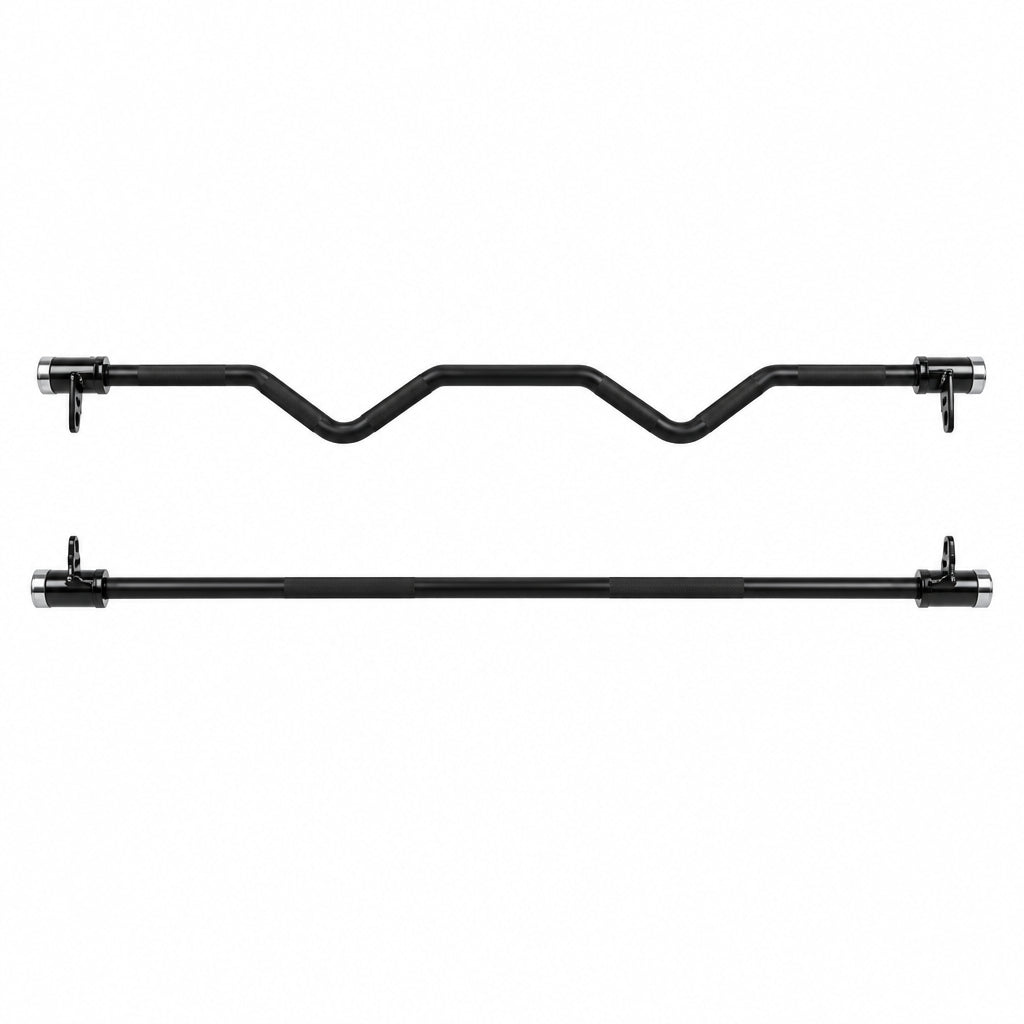

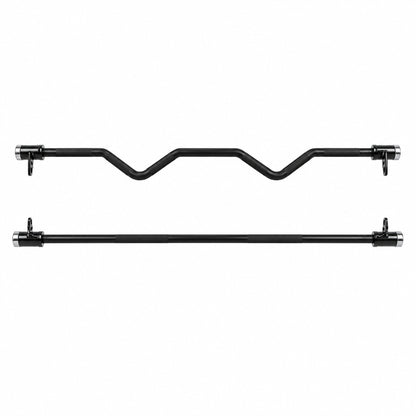

- "W" curl bar, shaped to sit between the chest contours and reduce wrist strain
- Straight bar
- Revolving short bar
- 2 x adjustable handle straps
- Tricep rope
- Close-grip handle
- Ankle strap
- Chain extension
- 2 x J-hooks and 2 x spotter arms
- Adjustable dip handles
- Reversible non-slip metal footplate
Optional upgrades (sold separately)
Want to go past the 90kg stacks? Add the Magnetic Weight Pin Attachment. It replaces the standard selector pin and lets you load Olympic plates onto the weight stack, so you can unlock even more resistance and add small 1.25kg or 2.5kg increments for steady progression.
Add landmine training with the Gymking X3 Landmine Attachment. It's a rotating landmine with a two-grip handle that locks onto the X3 Pro frame with a pop pin, for landmine presses, rows, squats and rotational work.
Specifications
- Uprights and attachment holes: 50 x 70mm uprights with 21mm holes. Attachments use a 20mm pin
- Type: Pin-loaded all-in-one: Smith machine, power rack and functional trainer
- Colour: Black with silver uprights
- Weight stacks: 2 x 90kg steel, 6kg increments
- Cable ratio: Interchangeable 1:1 or 2:1
- Frame: Powder-coated steel, 50 x 70mm and 50 x 120mm tube with 2mm wall
- Maximum user weight: 136kg (300lbs)
- Smith machine, J-hooks and spotter arms: 200kg (440lbs) maximum load
- Factory static testing: spotter arms tested at 670kg, Smith bar at 620kg and dip handles at 340kg for 5 minutes with no damage, plus aced 10° tip tests forward, backward and sideways
- Assembled dimensions: 2130mm high x 2035mm wide (with Smith bar) x 1735mm deep
- Floor area required: 3.5m²
Shipping specifications
- Shipping: Australia-wide delivery
- Shipping weight: Approx. 450kg
- Shipping dimensions: Height: 1.0m x Length: 2.29m x Width: 1.2m
SKU: GK-X3PRO
Warranty
Lifetime Frame Warranty. 2 Year for Moving Parts and Componentry.
Shipping Specifications
Height: 1.0
Length: 2.29
Width: 1.2
Weight: 450.0 kg
